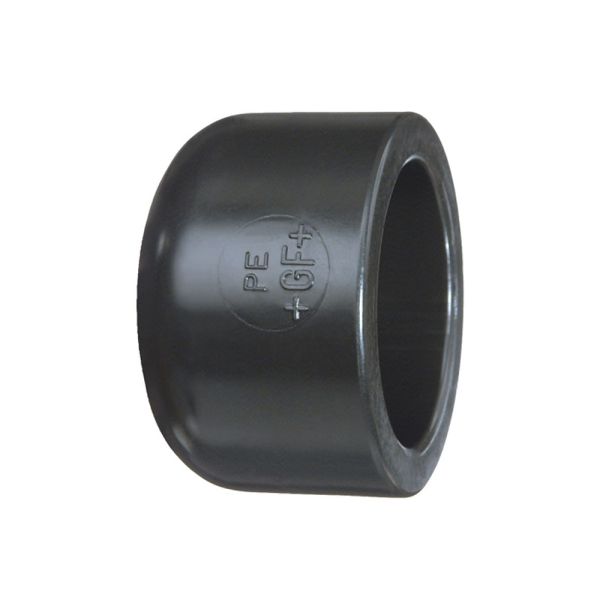

Georg Fischer ecoFIT SF End Cap

Skip to the beginning of the images gallery

More Info

Useful Information

These ecoFIT socket-fusion fittings, from Georg Fischer, are manufactured from heavy-duty and corrosion-resistant PE80 polyethylene for pipeline construction. They are suitable for conveying gas and water through ground-layed pipe systems.

Pressure Rating	10 bar
Temperature Range	-50°C to +60°C
Sizes	20mm - 110mm
Colour	Black - RAL 9005

GF-cap-diagram

Product Code	d (mm)	D (mm)	L (mm)	Weight (kg)
402024	20	30	27	0.010
402025	25	36	30	0.016
402026	32	44	34	0.025
402027	40	53	38	0.038
402028	50	65	44	0.061
402029	63	80	51	0.097
402030	75	91	66	0.150
402031	90	111	77	0.274
402032	110	137	93	0.405

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
402024	GF ecoFIT SF PE End Cap 10 Bar 20mm	£20.05	20%	You Pay: £16.04
402025	GF ecoFIT SF PE End Cap 10 Bar 25mm	£20.05	20%	You Pay: £16.04
402026	GF ecoFIT SF PE End Cap 10 Bar 32mm	£20.05	20%	You Pay: £16.04
402027	GF ecoFIT SF PE End Cap 10 Bar 40mm	£21.36	20%	You Pay: £17.09
402028	GF ecoFIT SF PE End Cap 10 Bar 50mm	£27.90	20%	You Pay: £22.32
402029	GF ecoFIT SF PE End Cap 10 Bar 63mm	£35.10	20%	You Pay: £28.08
402030	GF ecoFIT SF PE End Cap 10 Bar 75mm	£67.85	20%	You Pay: £54.28
402031	GF ecoFIT SF PE End Cap 10 Bar 90mm	£81.42	20%	You Pay: £65.14
402032	GF ecoFIT SF PE End Cap 10 Bar 110mm	£103.61	20%	You Pay: £82.89
