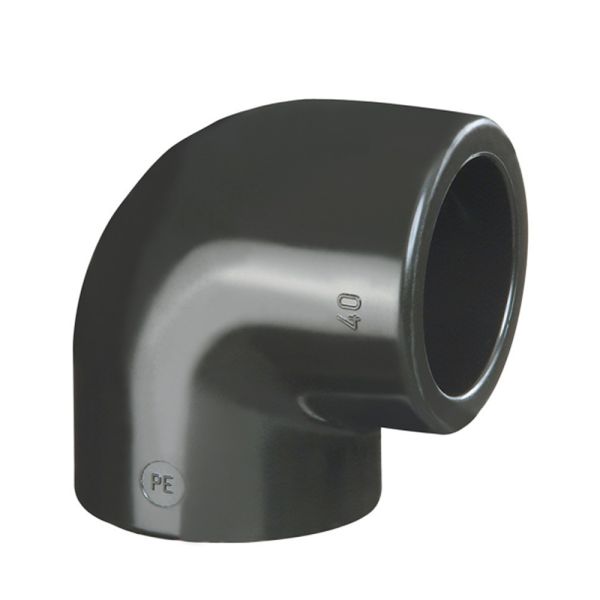

Elbow 90°

Useful Information

These ecoFIT socket-fusion fittings, from Georg Fischer, are manufactured from heavy-duty and corrosion-resistant PE80 polyethylene for pipeline construction. They are suitable for conveying gas and water through ground-layed pipe systems.

Pressure Rating 10 bar
Temperature Range -50°C to +60°C
Sizes 20 - 110mm
Colour Black - RAL 9005

GF-elbow-diagram

Product Code d (mm) z (mm) D (mm) L (mm) Weight (kg)
401922 20 14 31 28 0.022
401923 25 16 36 32 0.031
401924 32 20 44 38 0.048
401925 40 24 54 44 0.078
401926 50 28 66 51 0.129
401927 63 35 82 62 0.228
401928 75 45 93 76 0.311
401929 90 53 110 88 0.498
401930 110 65 134 106 0.864




If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.


Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
401922GF ecoFIT SF PE Elbow 90° 10 Bar 20mm £10.02 20% £8.02
401923GF ecoFIT SF PE Elbow 90° 10 Bar 25mm £11.73 20% £9.38
401924GF ecoFIT SF PE Elbow 90° 10 Bar 32mm £13.76 20% £11.01
401925GF ecoFIT SF PE Elbow 90° 10 Bar 40mm £18.35 20% £14.68
401926GF ecoFIT SF PE Elbow 90° 10 Bar 50mm £33.06 20% £26.45
401927GF ecoFIT SF PE Elbow 90° 10 Bar 63mm £42.96 20% £34.37
401928GF ecoFIT SF PE Elbow 90° 10 Bar 75mm £90.62 20% £72.50
401929GF ecoFIT SF PE Elbow 90° 10 Bar 90mm £114.28 20% £91.42
401930GF ecoFIT SF PE Elbow 90° 10 Bar 110mm £171.96 20% £137.57
