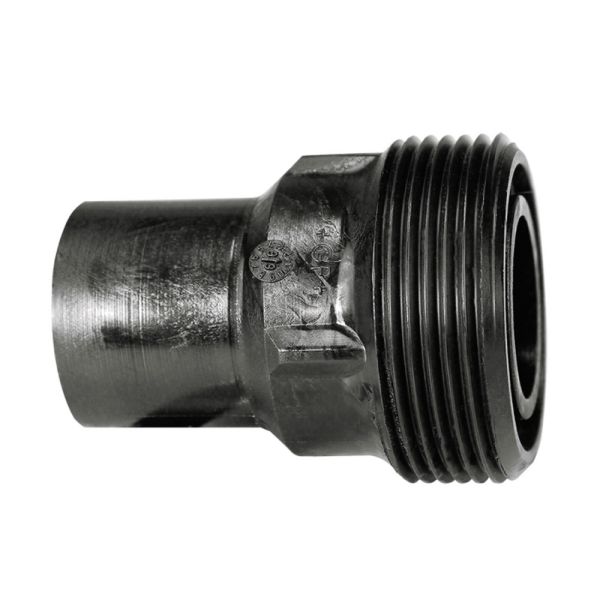

Georg Fischer ecoFIT BF Union Bush Plain x Thread M - 16 Bar
Useful Information
These ecoFIT butt-fusion fittings, from Georg Fischer, are manufactured from heavy-duty and corrosion-resistant polyethylene for pipeline construction. They are suitable for conveying gas and water through ground-layed pipe systems.
These fittings are infrared welding compatible (IR Plus®) and use conventional butt-welding according to DVS 2207. They have EPDM O-Ring gaskets.
| Pressure Rating | up to 16 bar |
| Temperature Range | -50°C to +60°C |
| Sizes | 20 - 110mm |
| Colour | Black - RAL 9005 |
| Product Code | d (mm) | L (mm) | L1 (mm) | G (inch) | e (mm) | Weight (kg) |
| 401916 | 20 | 54 | 26 | 1 | 1.9 | 0.016 |
| 401917 | 25 | 57 | 26 | 1 1/4 | 2.3 | 0.025 |
| 401918 | 32 | 60 | 25 | 1 1/2 | 2.9 | 0.035 |
| 401919 | 40 | 63 | 25 | 2 | 3.7 | 0.057 |
| 401920 | 50 | 66 | 25 | 2 1/4 | 4.6 | 0.077 |
| 401921 | 63 | 69 | 25 | 2 3/4 | 5.8 | 0.128 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
