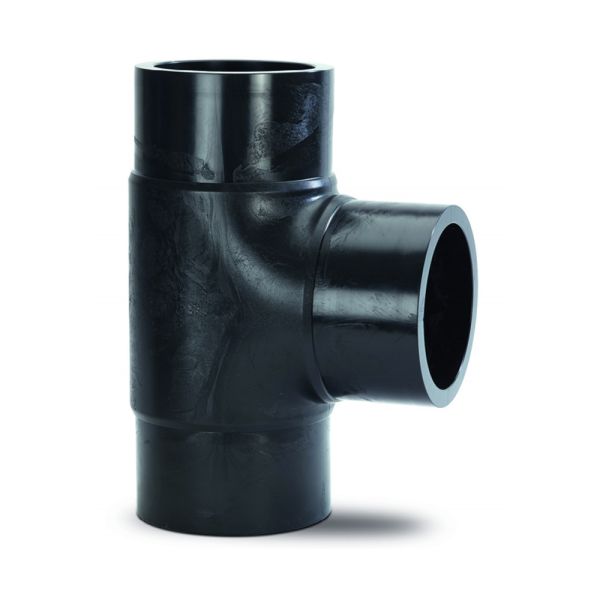

Georg Fischer ecoFIT BF Tee 90° Long - 10 Bar

Skip to the beginning of the images gallery

Useful Information

These ecoFIT butt-fusion fittings, from Georg Fischer, are manufactured from heavy-duty and corrosion-resistant polyethylene for pipeline construction. They are suitable for conveying gas and water through ground-layed pipe systems.

Pressure Rating	5 bar - Gas 10 bar - Water
Temperature Range	-50°C to +60°C
Sizes	90 - 800mm
Colour	Black - RAL 9005

GF-ecofit-bf-long-tee-90-diagram

Product Code	d (mm)	L (mm)	z (mm)	z1 (mm)	e (mm)	Weight (kg)
401058	90	80	300	150	5.4	0.777
401059	110	86	330	165	6.6	1.232
401060	125	92	366	183	7.4	1.690
401061	140	92	396	196	8.3	2.202
401062	160	104	428	214	9.5	3.201
401063	180	105	460	230	10.7	4.287
401064	200	115	500	250	11.9	5.889
401065	225	122	540	270	13.4	7.886
401066	250	130	575	288	14.8	10.000
401067	280	139	615	308	16.6	13.350
401068	315	150	695	346	18.7	17.985
401069	355	170	820	410	21.1	26.100
401070	400	190	900	450	23.7	35.700
401071	450	200	980	490	26.7	49.400
401072	500	220	1070	535	29.7	66.100
401073	560	245	1200	600	30.9	139.000
401074	630	265	1300	650	37.3	132.000
401075	710	430	1720	860	42.1	223.440
401076	800	415	1780	890	47.4	289.460

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
401058	GF ecoFIT BF PE Tee 90° Long 10 Bar 90mm	£59.60	20%	£47.68
401059	GF ecoFIT BF PE Tee 90° Long 10 Bar 110mm	£84.84	20%	£67.87
401060	GF ecoFIT BF PE Tee 90° Long 10 Bar 125mm	£119.39	20%	£95.51
401061	GF ecoFIT BF PE Tee 90° Long 10 Bar 140mm	£181.43	20%	£145.14
401062	GF ecoFIT BF PE Tee 90° Long 10 Bar 160mm	£210.38	20%	£168.30
401063	GF ecoFIT BF PE Tee 90° Long 10 Bar 180mm	£296.31	20%	£237.05
401064	GF ecoFIT BF PE Tee 90° Long 10 Bar 200mm	£423.33	20%	£338.66
401065	GF ecoFIT BF PE Tee 90° Long 10 Bar 225mm	£504.16	20%	£403.33
401066	GF ecoFIT BF PE Tee 90° Long 10 Bar 250mm	£608.85	20%	£487.08
401067	GF ecoFIT BF PE Tee 90° Long 10 Bar 280mm	£923.40	20%	£738.72
401068	GF ecoFIT BF PE Tee 90° Long 10 Bar 315mm	£1,180.93	20%	£944.74
401069	GF ecoFIT BF PE Tee 90° Long 10 Bar 355mm	£1,713.54	20%	£1,370.83
401070	GF ecoFIT BF PE Tee 90° Long 10 Bar 400mm	£2,358.85	20%	£1,887.08
401071	GF ecoFIT BF PE Tee 90° Long 10 Bar 450mm	£3,460.86	20%	£2,768.69
401072	GF ecoFIT BF PE Tee 90° Long 10 Bar 500mm	£4,455.31	20%	£3,564.25
401073	GF ecoFIT BF PE Tee 90° Long 10 Bar 560mm	£7,044.08	20%	£5,635.26
401074	GF ecoFIT BF PE Tee 90° Long 10 Bar 630mm	£10,388.61	20%	£8,310.89
401075	GF ecoFIT BF PE Tee 90° Long 10 Bar 710mm	£42,744.22	20%	£34,195.38
401076	GF ecoFIT BF PE Tee 90° Long 10 Bar 800mm	£54,398.08	20%	£43,518.46
