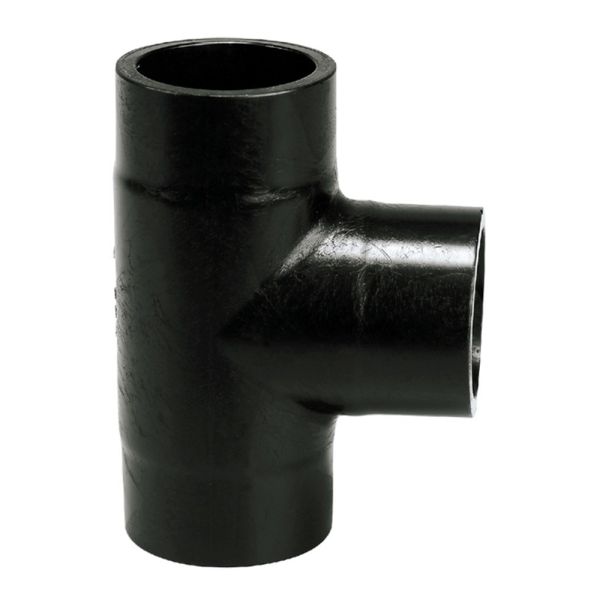

Georg Fischer ecoFIT BF Tee 90° - 16 Bar

Skip to the beginning of the images gallery

Useful Information

These ecoFIT butt-fusion fittings, from Georg Fischer, are manufactured from heavy-duty and corrosion-resistant polyethylene for pipeline construction. They are suitable for conveying gas and water through ground-layed pipe systems.

The 20mm to 225mm fittings are Infrared (IR Plus^®) compatible and all are suitable for conventional butt-welding according to DVS 2207.

Pressure Rating	16 bar
Temperature Range	-50°C to +60°C
Sizes	20 - 500mm
Colour	Black - RAL 9005

GF-bf-tee-90-diagram

Product Code	d (mm)	L (mm)	L1 (mm)	e (mm)	Weight (kg)
401538	20	38	17	1.9	0.013
401539	25	42	17	2.3	0.021
401540	32	46	17	2.9	0.042
401541	40	51	22	3.7	0.065
401542	50	58	22	4.6	0.111
401543	63	66	21	5.8	0.202
401544	75	75	20	6.8	0.312
401545	90	90	20	8.2	0.553
401546	110	110	20	10.0	1.002
401547	125	125	25	11.4	1.509
401548	140	140	28	12.7	2.105
401549	160	160	28	14.6	3.085
401550	180	215	94	16.4	5.740
401551	200	200	35	18.2	5.982
401552	225	220	35	20.5	8.090
401553	250	227	68	22.7	10.770
401554	280	267	87	25.4	15.950
401555	315	283	88	28.6	21.285
401556	355	345	105	32.3	32.600
401557	400	365	105	36.4	42.900
401558	450	425	135	40.9	63.300
401559	500	470	155	45.5	86.000

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
401538	GF ecoFIT BF PE Tee 90° 16 Bar 20mm	£5.12	20%	£4.10
401539	GF ecoFIT BF PE Tee 90° 16 Bar 25mm	£5.57	20%	£4.46
401540	GF ecoFIT BF PE Tee 90° 16 Bar 32mm	£6.30	20%	£5.04
401541	GF ecoFIT BF PE Tee 90° 16 Bar 40mm	£9.49	20%	£7.59
401542	GF ecoFIT BF PE Tee 90° 16 Bar 50mm	£12.58	20%	£10.06
401543	GF ecoFIT BF PE Tee 90° 16 Bar 63mm	£19.49	20%	£15.59
401544	GF ecoFIT BF PE Tee 90° 16 Bar 75mm	£38.25	20%	£30.60
401545	GF ecoFIT BF PE Tee 90° 16 Bar 90mm	£55.67	20%	£44.54
401546	GF ecoFIT BF PE Tee 90° 16 Bar 110mm	£81.23	20%	£64.98
401547	GF ecoFIT BF PE Tee 90° 16 Bar 125mm	£112.08	20%	£89.66
401548	GF ecoFIT BF PE Tee 90° 16 Bar 140mm	£140.57	20%	£112.46
401549	GF ecoFIT BF PE Tee 90° 16 Bar 160mm	£236.29	20%	£189.03
401550	GF ecoFIT BF PE Tee 90° 16 Bar 180mm	£357.15	20%	£285.72
401551	GF ecoFIT BF PE Tee 90° 16 Bar 200mm	£434.04	20%	£347.23
401552	GF ecoFIT BF PE Tee 90° 16 Bar 225mm	£515.82	20%	£412.66
401553	GF ecoFIT BF PE Tee 90° 16 Bar 250mm	£714.31	20%	£571.45
401554	GF ecoFIT BF PE Tee 90° 16 Bar 280mm	£956.42	20%	£765.14
401555	GF ecoFIT BF PE Tee 90° 16 Bar 315mm	£1,359.00	20%	£1,087.20
401556	GF ecoFIT BF PE Tee 90° 16 Bar 355mm	£1,709.30	20%	£1,367.44
401557	GF ecoFIT BF PE Tee 90° 16 Bar 400mm	£2,550.87	20%	£2,040.70
401558	GF ecoFIT BF PE Tee 90° 16 Bar 450mm	£3,650.70	20%	£2,920.56
401559	GF ecoFIT BF PE Tee 90° 16 Bar 500mm	£4,637.97	20%	£3,710.38
