Georg Fischer ecoFIT BF Reducing Tee 90° Long Welded - 16 Bar

Loading...

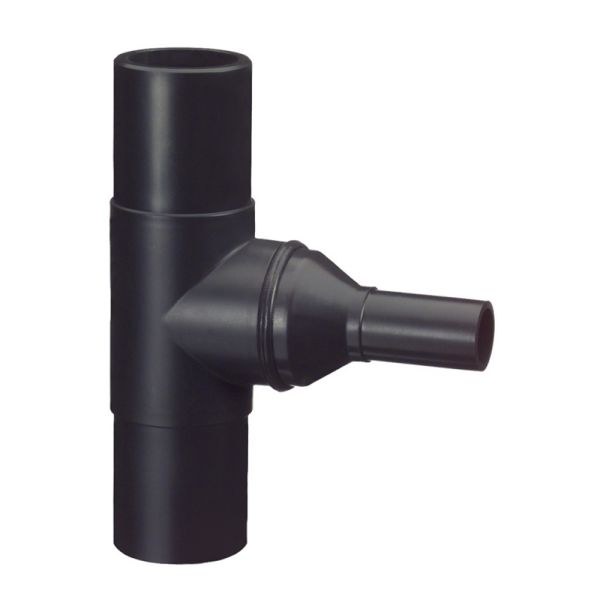

main product photo
More Info
Useful Information

These ecoFIT butt-fusion fittings, from Georg Fischer, are manufactured from heavy-duty and corrosion-resistant polyethylene for pipeline construction. They are suitable for conveying gas and water through ground-layed pipe systems.

Pressure Rating 10 bar - Gas
16 bar - Water
Temperature Range -50°C to +60°C
Sizes 25 x 20mm - 400 x 355mm
Colour Black - RAL 9005

GF-ecofit-bf-long-reducing-tee-welded-90-diagram

Product Code d (mm) d1 (mm) z (mm) z1 (mm) e (mm) e1 (mm) L (mm) L1 (mm) Weight (kg)
401077 25 20 160 - 3.0 3.0 52 52 0.053
401078 32 20 170 105 3.0 3.0 54 52 0.094
401079 32 25 170 110 3.0 3.0 54 52 0.098
401080 40 20 190 120 3.7 3.0 57 52 0.124
401081 40 25 190 120 3.7 3.0 57 52 0.160
401082 40 32 190 120 3.7 3.0 57 52 0.160
401083 50 20 210 140 4.6 3.0 63 52 0.252
401084 50 25 210 130 4.6 3.0 63 52 0.203
401085 50 32 210 130 4.6 3.0 63 53 0.207
401086 50 40 210 130 4.6 3.7 63 57 0.224
401087 75 40 264 180 6.8 3.7 72 57 0.603
401088 75 50 264 180 6.8 3.7 72 57 -
401089 75 63 264 180 6.8 3.7 72 57 -
401090 125 63 366 225 11.4 5.8 92 61 2.359
401091 125 75 366 235 11.4 6.8 92 72 2.434
401092 140 75 396 230 12.7 6.8 92 70 3.038
401093 140 90 396 235 12.7 8.2 92 79 3.092
401094 140 110 396 240 12.7 10.0 92 82 3.208
401095 140 125 396 240 12.7 11.4 92 90 4.170
401096 160 125 420 265 14.6 11.4 102 92 4.544
401097 160 140 420 270 14.6 12.7 102 96 5.895
401098 180 125 460 285 16.4 11.4 107 92 6.111
401099 180 140 460 295 16.4 12.7 107 110 6.317
401100 200 125 500 295 18.2 11.4 117 92 8.424
401101 200 140 500 310 18.2 12.7 117 110 10.570
401102 200 180 500 310 18.2 16.4 117 110 9.031
401103 225 125 540 320 20.5 11.4 122 92 11.260
401104 225 140 540 335 20.5 12.7 122 110 14.574
401105 225 160 540 340 20.5 - 122 110 -
401106 225 200 540 340 20.5 18.2 122 117 14.925
401107 250 200 576 350 22.7 16.4 130 105 14.327
401108 250 225 576 360 22.7 18.2 130 112 19.220
401109 250 200 576 390 22.7 20.5 130 120 15.240
401110 280 225 616 420 25.4 18.2 139 112 24.520
401111 280 250 616 420 25.4 20.5 139 120 21.755
401112 280 200 616 420 25.4 22.7 139 130 21.055
401113 315 200 690 470 28.6 18.2 150 134 33.672
401114 315 280 690 480 28.6 25.4 150 139 34.950
401115 355 250 818 530 32.3 22.7 165 130 48.900
401116 355 280 818 480 32.3 25.4 165 139 49.300
401117 355 315 818 480 32.3 28.6 165 150 49.690
401118 400 280 910 530 36.4 25.4 180 139 52.915
401119 400 315 910 580 36.4 28.6 180 150 53.625
401120 400 355 910 675 36.4 32.3 180 165 54.075

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.




More Info
Grouped product items
Code Product Name List Price You Save You Pay Quantity
401077 GF ecoFIT BF PE Reducing Tee 90° Long W 16 Bar 25mm x 20mm £30.00 20%
You Pay:  £24.00
401078 GF ecoFIT BF PE Reducing Tee 90° Long W 16 Bar 32mm x 20mm £30.00 20%
You Pay:  £24.00
401079 GF ecoFIT BF PE Reducing Tee 90° Long W 16 Bar 32mm x 25mm £30.00 20%
You Pay:  £24.00
401080 GF ecoFIT BF PE Reducing Tee 90° Long W 16 Bar 40mm x 20mm £33.00 20%
You Pay:  £26.40
401081 GF ecoFIT BF PE Reducing Tee 90° Long W 16 Bar 40mm x 25mm £33.00 20%
You Pay:  £26.40
401082 GF ecoFIT BF PE Reducing Tee 90° Long W 16 Bar 40mm x 32mm £33.00 20%
You Pay:  £26.40
401083 GF ecoFIT BF PE Reducing Tee 90° Long W 16 Bar 50mm x 20mm £33.00 20%
You Pay:  £26.40
401084 GF ecoFIT BF PE Reducing Tee 90° Long W 16 Bar 50mm x 25mm £33.00 20%
You Pay:  £26.40
401085 GF ecoFIT BF PE Reducing Tee 90° Long W 16 Bar 50mm x 32mm £33.00 20%
You Pay:  £26.40
401086 GF ecoFIT BF PE Reducing Tee 90° Long W 16 Bar 50mm x 40mm £33.00 20%
You Pay:  £26.40
401087 GF ecoFIT BF PE Reducing Tee 90° Long W 16 Bar 75mm x 40mm £51.00 20%
You Pay:  £40.80
401089 GF ecoFIT BF PE Reducing Tee 90° Long W 16 Bar 75mm x 63mm £53.70 20%
You Pay:  £42.96
401090 GF ecoFIT BF PE Reducing Tee 90° Long W 16 Bar 125mm x 63mm £149.00 20%
You Pay:  £119.20
401091 GF ecoFIT BF PE Reducing Tee 90° Long W 16 Bar 125mm x 75mm £149.00 20%
You Pay:  £119.20
401092 GF ecoFIT BF PE Reducing Tee 90° Long W 16 Bar 140mm x 75mm £243.00 20%
You Pay:  £194.40
401093 GF ecoFIT BF PE Reducing Tee 90° Long W 16 Bar 140mm x 90mm £243.00 20%
You Pay:  £194.40
401094 GF ecoFIT BF PE Reducing Tee 90° Long W 16 Bar 140mm x 110mm £243.00 20%
You Pay:  £194.40
401095 GF ecoFIT BF PE Reducing Tee 90° Long W 16 Bar 140mm x 125mm £243.00 20%
You Pay:  £194.40
401096 GF ecoFIT BF PE Reducing Tee 90° Long W 16 Bar 160mm x 125mm £303.00 20%
You Pay:  £242.40
401097 GF ecoFIT BF PE Reducing Tee 90° Long W 16 Bar 160mm x 140mm £303.00 20%
You Pay:  £242.40
401098 GF ecoFIT BF PE Reducing Tee 90° Long W 16 Bar 180mm x 125mm £420.00 20%
You Pay:  £336.00
401099 GF ecoFIT BF PE Reducing Tee 90° Long W 16 Bar 180mm x 140mm £420.00 20%
You Pay:  £336.00
401100 GF ecoFIT BF PE Reducing Tee 90° Long W 16 Bar 200mm x 125mm £612.00 20%
You Pay:  £489.60
401101 GF ecoFIT BF PE Reducing Tee 90° Long W 16 Bar 200mm x 140mm £612.00 20%
You Pay:  £489.60
401102 GF ecoFIT BF PE Reducing Tee 90° Long W 16 Bar 200mm x 180mm £612.00 20%
You Pay:  £489.60
401103 GF ecoFIT BF PE Reducing Tee 90° Long W 16 Bar 225mm x 125mm £683.00 20%
You Pay:  £546.40
401104 GF ecoFIT BF PE Reducing Tee 90° Long W 16 Bar 225mm x 140mm £683.00 20%
You Pay:  £546.40
401105 GF ecoFIT BF PE Reducing Tee 90° Long W 16 Bar 225mm x 160mm £713.40 20%
You Pay:  £570.72
401106 GF ecoFIT BF PE Reducing Tee 90° Long W 16 Bar 225mm x 200mm £683.00 20%
You Pay:  £546.40
401107 GF ecoFIT BF PE Reducing Tee 90° Long W 16 Bar 250mm x 180mm £867.00 20%
You Pay:  £693.60
401108 GF ecoFIT BF PE Reducing Tee 90° Long W 16 Bar 250mm x 200mm £867.00 20%
You Pay:  £693.60
401109 GF ecoFIT BF PE Reducing Tee 90° Long W 16 Bar 250mm x 225mm £867.00 20%
You Pay:  £693.60
401110 GF ecoFIT BF PE Reducing Tee 90° Long W 16 Bar 280mm x 200mm £1,178.00 20%
You Pay:  £942.40
401111 GF ecoFIT BF PE Reducing Tee 90° Long W 16 Bar 280mm x 225mm £1,178.00 20%
You Pay:  £942.40
401112 GF ecoFIT BF PE Reducing Tee 90° Long W 16 Bar 280mm x 250mm £1,178.00 20%
You Pay:  £942.40
401114 GF ecoFIT BF PE Reducing Tee 90° Long W 16 Bar 315mm x 280mm £2,080.00 20%
You Pay:  £1,664.00
401115 GF ecoFIT BF PE Reducing Tee 90° Long W 16 Bar 355mm x 250mm £4,140.00 20%
You Pay:  £3,312.00
401116 GF ecoFIT BF PE Reducing Tee 90° Long W 16 Bar 355mm x 280mm £3,797.30 20%
You Pay:  £3,037.84
401117 GF ecoFIT BF PE Reducing Tee 90° Long W 16 Bar 355mm x 315mm £3,797.30 20%
You Pay:  £3,037.84
401118 GF ecoFIT BF PE Reducing Tee 90° Long W 16 Bar 400mm x 280mm £6,073.21 20%
You Pay:  £4,858.57
401119 GF ecoFIT BF PE Reducing Tee 90° Long W 16 Bar 400mm x 315mm £6,073.21 20%
You Pay:  £4,858.57
401120 GF ecoFIT BF PE Reducing Tee 90° Long W 16 Bar 400mm x 355mm £6,073.21 20%
You Pay:  £4,858.57
