Georg Fischer ecoFIT BF Reducing Tee 90° Long Welded - 10 Bar

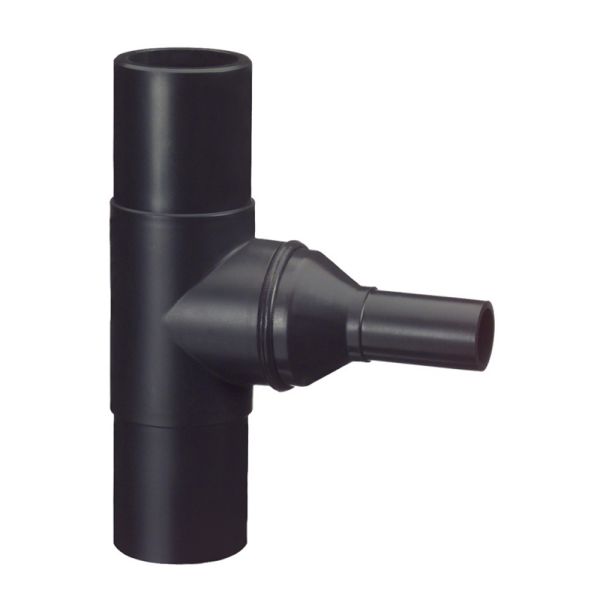

main product photo
More Info
Useful Information

These ecoFIT butt-fusion fittings, from Georg Fischer, are manufactured from heavy-duty and corrosion-resistant polyethylene for pipeline construction. They are suitable for conveying gas and water through ground-layed pipe systems.

Pressure Rating 5 bar - Gas
10 bar - Water
Temperature Range -50°C to +60°C
Sizes 125 x 63mm - 400 x 355mm
Colour Black - RAL 9005

GF-ecofit-bf-long-reducing-tee-welded-90-diagram

Product Code d (mm) d1 (mm) z (mm) z1 (mm) e (mm) e1 (mm) L (mm) L1 (mm) Weight (kg)
401154 125 63 366 225 7 4 92 61 1.752
401155 125 75 366 235 7 5 92 72 1.806
401156 125 90 366 235 7 5 92 72 1.712
401157 140 75 396 230 8 5 92 70 2.820
401158 140 90 396 235 8 5 92 79 2.211
401159 140 110 396 240 8 7 92 82 2.266
401160 140 125 396 240 8 7 92 90 3.317
401161 160 125 420 265 10 5 102 92 3.311
401162 160 140 420 270 10 8 102 96 3.416
401163 180 110 460 285 11 7 107 92 4.410
401164 180 125 460 285 11 7 107 92 4.460
401165 180 140 460 295 11 8 107 110 4.483
401166 200 125 500 295 12 7 117 92 5.886
401167 200 140 500 310 12 8 117 110 7.200
401168 200 180 500 310 12 11 117 110 6.900
401169 225 125 540 320 13 7 122 92 7.937
401170 225 140 540 335 13 8 122 110 8.780
401171 225 200 540 340 13 12 122 117 9.064
401172 250 180 576 350 15 11 130 105 15.000
401173 250 200 576 360 15 12 130 112 15.440
401174 250 225 576 390 15 13 130 120 15.620
401175 280 200 616 420 17 12 139 112 19.200
401176 280 225 616 420 17 13 139 120 19.500
401177 280 250 616 420 17 15 139 130 20.120
401178 315 200 690 470 19 12 150 134 18.700
401179 315 280 690 480 19 17 150 139 26.940
401180 355 250 818 530 21 15 165 130 35.770
401181 355 280 818 480 21 17 165 139 36.330
401182 355 315 818 480 21 19 165 150 37.740
401183 400 280 910 530 24 17 180 139 48.330
401184 400 315 910 580 24 19 180 150 48.880
401185 400 355 910 675 24 21 180 165 50.020

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.






More Info
Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
401154GF ecoFIT BF PE Reducing Tee 90° Long W 10 Bar 125mm x 63mm £118.39 20%
£94.71
401155GF ecoFIT BF PE Reducing Tee 90° Long W 10 Bar 125mm x 75mm £118.39 20%
£94.71
401156GF ecoFIT BF PE Reducing Tee 90° Long W 10 Bar 125mm x 90mm £119.17 20%
£95.34
401157GF ecoFIT BF PE Reducing Tee 90° Long W 10 Bar 140mm x 75mm £195.94 20%
£156.75
401158GF ecoFIT BF PE Reducing Tee 90° Long W 10 Bar 140mm x 90mm £194.78 20%
£155.82
401159GF ecoFIT BF PE Reducing Tee 90° Long W 10 Bar 140mm x 110mm £194.78 20%
£155.82
401160GF ecoFIT BF PE Reducing Tee 90° Long W 10 Bar 140mm x 125mm £194.78 20%
£155.82
401161GF ecoFIT BF PE Reducing Tee 90° Long W 10 Bar 160mm x 125mm £242.22 20%
£193.78
401162GF ecoFIT BF PE Reducing Tee 90° Long W 10 Bar 160mm x 140mm £242.22 20%
£193.78
401163GF ecoFIT BF PE Reducing Tee 90° Long W 10 Bar 180mm x 110mm £336.59 20%
£269.27
401164GF ecoFIT BF PE Reducing Tee 90° Long W 10 Bar 180mm x 125mm £336.59 20%
£269.27
401165GF ecoFIT BF PE Reducing Tee 90° Long W 10 Bar 180mm x 140mm £336.59 20%
£269.27
401166GF ecoFIT BF PE Reducing Tee 90° Long W 10 Bar 200mm x 125mm £490.43 20%
£392.34
401167GF ecoFIT BF PE Reducing Tee 90° Long W 10 Bar 200mm x 140mm £490.43 20%
£392.34
401168GF ecoFIT BF PE Reducing Tee 90° Long W 10 Bar 200mm x 180mm £490.43 20%
£392.34
401169GF ecoFIT BF PE Reducing Tee 90° Long W 10 Bar 225mm x 125mm £546.21 20%
£436.97
401170GF ecoFIT BF PE Reducing Tee 90° Long W 10 Bar 225mm x 140mm £546.21 20%
£436.97
401171GF ecoFIT BF PE Reducing Tee 90° Long W 10 Bar 225mm x 200mm £546.21 20%
£436.97
401172GF ecoFIT BF PE Reducing Tee 90° Long W 10 Bar 250mm x 180mm £693.48 20%
£554.78
401173GF ecoFIT BF PE Reducing Tee 90° Long W 10 Bar 250mm x 200mm £693.48 20%
£554.78
401174GF ecoFIT BF PE Reducing Tee 90° Long W 10 Bar 250mm x 225mm £693.48 20%
£554.78
401175GF ecoFIT BF PE Reducing Tee 90° Long W 10 Bar 280mm x 200mm £940.44 20%
£752.35
401176GF ecoFIT BF PE Reducing Tee 90° Long W 10 Bar 280mm x 225mm £940.44 20%
£752.35
401177GF ecoFIT BF PE Reducing Tee 90° Long W 10 Bar 280mm x 250mm £940.44 20%
£752.35
401178GF ecoFIT BF PE Reducing Tee 90° Long W 10 Bar 315mm x 200mm £1,660.03 20%
£1,328.02
401179GF ecoFIT BF PE Reducing Tee 90° Long W 10 Bar 315mm x 280mm £1,660.03 20%
£1,328.02
401180GF ecoFIT BF PE Reducing Tee 90° Long W 10 Bar 355mm x 250mm £3,330.42 20%
£2,664.34
401181GF ecoFIT BF PE Reducing Tee 90° Long W 10 Bar 355mm x 280mm £3,344.94 20%
£2,675.95
401182GF ecoFIT BF PE Reducing Tee 90° Long W 10 Bar 355mm x 315mm £3,344.94 20%
£2,675.95
401183GF ecoFIT BF PE Reducing Tee 90° Long W 10 Bar 400mm x 280mm £3,968.94 20%
£3,175.15
401184GF ecoFIT BF PE Reducing Tee 90° Long W 10 Bar 400mm x 315mm £3,968.94 20%
£3,175.15
401185GF ecoFIT BF PE Reducing Tee 90° Long W 10 Bar 400mm x 355mm £3,968.94 20%
£3,175.15
