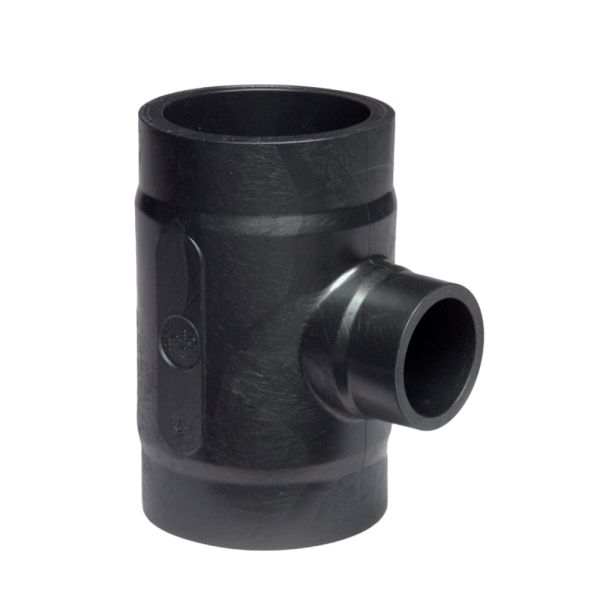

Georg Fischer ecoFIT BF Reducing Tee 90° - 10 Bar
Useful Information
These ecoFIT butt-fusion fittings, from Georg Fischer, are manufactured from heavy-duty and corrosion-resistant polyethylene for pipeline construction. They are suitable for conveying gas and water through ground-layed pipe systems.
The 90mm x 63mm to 225 x 160mm fittings are Infrared (IR Plus®) compatible and all are suitable for conventional butt-welding according to DVS 2207.
| Pressure Rating | 5 bar - Gas 10 bar - Water |
| Temperature Range | -50°C to +60°C |
| Sizes | 63 x 32mm - 225 x 160mm |
| Colour | Black - RAL 9005 |
| Product Code | d (mm) | d1 (mm) | L (mm) | L1 (mm) | L2 (mm) | L3 (mm) | e (mm) | e1 (mm) | Weight (kg) |
| *401593 | 63 | 32 | 65 | 70 | 25 | 25 | 3.6 | 2.9 | 0.163 |
| 401594 | 63 | 50 | 65 | 70 | 25 | 25 | 3.6 | 2.9 | 0.171 |
| *401595 | 75 | 32 | 70 | 75 | 25 | 25 | 4.3 | 2.9 | 0.231 |
| 401596 | 75 | 50 | 70 | 75 | 25 | 25 | 4.3 | 2.9 | 0.250 |
| 401597 | 75 | 63 | 70 | 75 | 25 | 25 | 4.3 | 3.6 | 0.263 |
| 401598 | 90 | 50 | 80 | 85 | 25 | 25 | 5.1 | 2.9 | 0.411 |
| 401599 | 90 | 63 | 80 | 85 | 25 | 25 | 5.1 | 3.6 | 0.329 |
| 401600 | 90 | 75 | 80 | 85 | 25 | 25 | 5.1 | 4.3 | 0.339 |
| *401601 | 110 | 32 | 90 | 95 | 30 | 25 | 6.3 | 2.9 | 0.643 |
| 401602 | 110 | 50 | 90 | 95 | 30 | 25 | 6.3 | 2.9 | 0.655 |
| 401603 | 110 | 63 | 90 | 95 | 30 | 25 | 6.3 | 3.6 | 0.516 |
| 401604 | 110 | 75 | 90 | 95 | 30 | 25 | 6.3 | 4.3 | 0.521 |
| 401605 | 110 | 90 | 90 | 95 | 30 | 25 | 6.3 | 5.1 | 0.529 |
| 401606 | 160 | 63 | 142 | 135 | 50 | 30 | 9.1 | 3.6 | 2.103 |
| 401607 | 160 | 75 | 142 | 135 | 50 | 30 | 9.1 | 4.3 | 2.142 |
| 401608 | 160 | 90 | 142 | 135 | 50 | 30 | 9.1 | 5.1 | 1.668 |
| 401609 | 160 | 110 | 142 | 135 | 50 | 30 | 9.1 | 6.3 | 1.687 |
| 401610 | 225 | 90 | 155 | 165 | 40 | 30 | 12.8 | 5.1 | 3.439 |
| 401611 | 225 | 110 | 155 | 165 | 40 | 30 | 12.8 | 6.3 | 3.448 |
| 401612 | 225 | 160 | 155 | 165 | 40 | 30 | 12.8 | 9.1 | 3.471 |
*SDR11 Branches
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
