Georg Fischer ecoFIT BF Reducing Coupling Flush - 16 Bar

Loading...

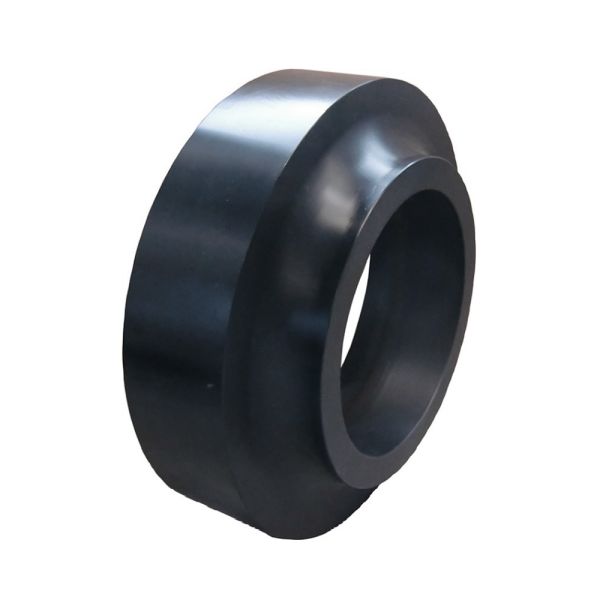

main product photo
More Info
Useful Information

These ecoFIT butt-fusion fittings, from Georg Fischer, are manufactured from heavy-duty and corrosion-resistant polyethylene for pipeline construction. They are suitable for conveying gas and water through ground-layed pipe systems.

Pressure Rating 16 bar
Temperature Range -50°C to +60°C
Sizes 355 x 225mm - 630 x 560mm
Colour Black - RAL 9005

GF-bf-flush-reducing-coupling-diagram

Product Code d1 (mm) d2 (mm) L (mm) L1 (mm) L2 (mm) e1 (mm) e2 (mm) Weight (kg)
401654 355 225 130 95 10 32.2 20.5 5.230
401655 355 250 115 80 10 32.3 22.7 3.752
401656 355 280 115 80 10 32.3 25.4 4.066
401657 355 315 115 80 15 32.3 28.6 4.149
401658 400 225 145 110 10 36.3 20.5 7.964
401659 400 250 135 100 10 36.4 22.7 6.861
401660 400 280 135 100 10 36.4 25.4 6.679
401661 400 315 135 100 10 36.4 28.6 6.460
401662 400 355 135 100 13 36.4 32.3 6.101
401663 450 225 165 125 10 40.9 20.5 11.965
401664 450 250 160 120 10 40.9 22.7 11.087
401665 450 280 150 100 15 40.9 25.4 9.604
401666 450 315 150 100 15 40.9 28.6 9.091
401667 450 355 150 100 15 40.9 32.3 8.656
401668 450 400 150 100 15 40.9 36.4 8.369
401669 500 225 180 130 10 45.4 20.5 16.053
401670 500 250 180 130 10 45.4 22.7 15.784
401671 500 280 175 125 10 45.4 25.4 14.691
401672 500 315 165 115 10 45.5 28.6 10.921
401673 500 355 165 115 10 45.5 32.3 11.321
401674 500 400 165 115 10 45.5 36.4 12.453
401675 500 450 165 115 25 45.5 40.9 12.640
401676 560 315 210 160 10 50.8 28.6 22.204
401677 560 355 200 150 10 50.8 32.2 19.976
401678 560 400 185 135 10 50.8 36.3 17.215
401679 560 450 165 115 10 50.8 40.9 14.263
401680 560 500 165 115 10 50.8 45.4 13.955
401681 630 315 220 170 10 57.2 28.6 29.984
401682 630 355 220 170 10 57.2 32.2 29.376
401683 630 400 210 160 10 57.2 36.3 26.541
401684 630 450 195 145 10 57.2 40.9 23.034
401685 630 500 175 125 10 57.2 45.4 19.243
401686 630 560 165 115 20 57.2 50.8 17.438



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.


More Info
Grouped product items
Code Product Name List Price You Save You Pay Quantity
401654 GF ecoFIT BF PE Reducing Coupling Flush 16 Bar 355mm x 225mm £485.35 20%
You Pay:  £388.28
401655 GF ecoFIT BF PE Reducing Coupling Flush 16 Bar 355mm x 250mm £436.09 20%
You Pay:  £348.87
401656 GF ecoFIT BF PE Reducing Coupling Flush 16 Bar 355mm x 280mm £405.21 20%
You Pay:  £324.17
401657 GF ecoFIT BF PE Reducing Coupling Flush 16 Bar 355mm x 315mm £392.80 20%
You Pay:  £314.24
401658 GF ecoFIT BF PE Reducing Coupling Flush 16 Bar 400mm x 225mm £1,816.30 20%
You Pay:  £1,453.04
401659 GF ecoFIT BF PE Reducing Coupling Flush 16 Bar 400mm x 250mm £1,533.41 20%
You Pay:  £1,226.73
401660 GF ecoFIT BF PE Reducing Coupling Flush 16 Bar 400mm x 280mm £1,316.23 20%
You Pay:  £1,052.98
401661 GF ecoFIT BF PE Reducing Coupling Flush 16 Bar 400mm x 315mm £1,212.24 20%
You Pay:  £969.79
401662 GF ecoFIT BF PE Reducing Coupling Flush 16 Bar 400mm x 355mm £864.32 20%
You Pay:  £691.46
401663 GF ecoFIT BF PE Reducing Coupling Flush 16 Bar 450mm x 225mm £2,769.28 20%
You Pay:  £2,215.42
401664 GF ecoFIT BF PE Reducing Coupling Flush 16 Bar 450mm x 250mm £2,461.62 20%
You Pay:  £1,969.30
401665 GF ecoFIT BF PE Reducing Coupling Flush 16 Bar 450mm x 280mm £1,881.79 20%
You Pay:  £1,505.43
401666 GF ecoFIT BF PE Reducing Coupling Flush 16 Bar 450mm x 315mm £1,670.70 20%
You Pay:  £1,336.56
401667 GF ecoFIT BF PE Reducing Coupling Flush 16 Bar 450mm x 355mm £1,516.76 20%
You Pay:  £1,213.41
401668 GF ecoFIT BF PE Reducing Coupling Flush 16 Bar 450mm x 400mm £1,241.08 20%
You Pay:  £992.86
401669 GF ecoFIT BF PE Reducing Coupling Flush 16 Bar 500mm x 225mm £3,692.34 20%
You Pay:  £2,953.87
401670 GF ecoFIT BF PE Reducing Coupling Flush 16 Bar 500mm x 250mm £3,282.11 20%
You Pay:  £2,625.69
401671 GF ecoFIT BF PE Reducing Coupling Flush 16 Bar 500mm x 280mm £2,974.44 20%
You Pay:  £2,379.55
401672 GF ecoFIT BF PE Reducing Coupling Flush 16 Bar 500mm x 315mm £2,296.54 20%
You Pay:  £1,837.23
401673 GF ecoFIT BF PE Reducing Coupling Flush 16 Bar 500mm x 355mm £2,197.59 20%
You Pay:  £1,758.07
401674 GF ecoFIT BF PE Reducing Coupling Flush 16 Bar 500mm x 400mm £1,835.49 20%
You Pay:  £1,468.39
401675 GF ecoFIT BF PE Reducing Coupling Flush 16 Bar 500mm x 450mm £1,662.90 20%
You Pay:  £1,330.32
401676 GF ecoFIT BF PE Reducing Coupling Flush 16 Bar 560mm x 315mm £3,992.93 20%
You Pay:  £3,194.34
401677 GF ecoFIT BF PE Reducing Coupling Flush 16 Bar 560mm x 355mm £3,244.32 20%
You Pay:  £2,595.46
401678 GF ecoFIT BF PE Reducing Coupling Flush 16 Bar 560mm x 400mm £2,991.33 20%
You Pay:  £2,393.06
401679 GF ecoFIT BF PE Reducing Coupling Flush 16 Bar 560mm x 450mm £1,865.38 20%
You Pay:  £1,492.30
401680 GF ecoFIT BF PE Reducing Coupling Flush 16 Bar 560mm x 500mm £1,523.81 20%
You Pay:  £1,219.05
401681 GF ecoFIT BF PE Reducing Coupling Flush 16 Bar 630mm x 315mm £5,442.81 20%
You Pay:  £4,354.25
401682 GF ecoFIT BF PE Reducing Coupling Flush 16 Bar 630mm x 355mm £4,453.25 20%
You Pay:  £3,562.60
401683 GF ecoFIT BF PE Reducing Coupling Flush 16 Bar 630mm x 400mm £3,706.88 20%
You Pay:  £2,965.50
401684 GF ecoFIT BF PE Reducing Coupling Flush 16 Bar 630mm x 450mm £3,107.62 20%
You Pay:  £2,486.10
401685 GF ecoFIT BF PE Reducing Coupling Flush 16 Bar 630mm x 500mm £2,286.09 20%
You Pay:  £1,828.87
401686 GF ecoFIT BF PE Reducing Coupling Flush 16 Bar 630mm x 560mm £1,896.46 20%
You Pay:  £1,517.17
