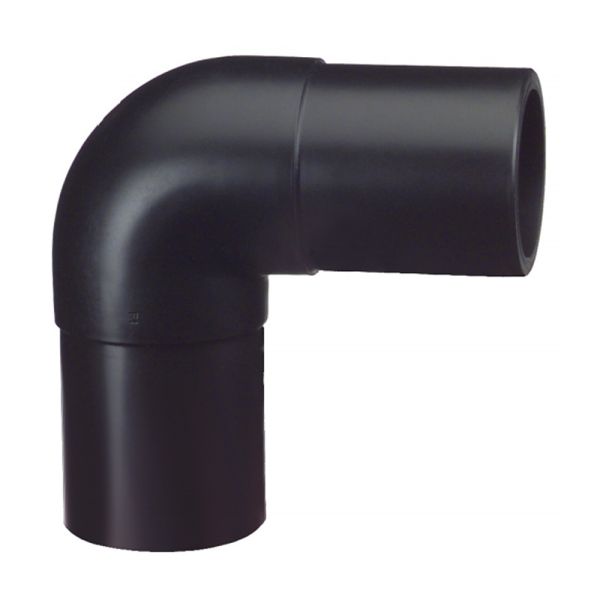

Georg Fischer ecoFIT BF Elbow 90° Long - 10 Bar
Useful Information
These ecoFIT butt-fusion fittings, from Georg Fischer, are manufactured from heavy-duty and corrosion-resistant polyethylene for pipeline construction. They are suitable for conveying gas and water through ground-layed pipe systems.
| Pressure Rating | 5 bar - Gas 10 bar - Water |
| Temperature Range | -50°C to +60°C |
| Sizes | 90 - 315mm |
| Colour | Black - RAL 9005 |
| Product Code | d (mm) | L (mm) | z (mm) | e (mm) | Weight (kg) |
| 400739 | 90 | 81 | 150 | 5.4 | 0.543 |
| 400740 | 110 | 86 | 165 | 6.6 | 0.876 |
| 400741 | 125 | 92 | 180 | 7.4 | 0.927 |
| 400742 | 140 | 92 | 194 | 8.3 | 1.547 |
| 400743 | 160 | 102 | 210 | 9.5 | 2.385 |
| 400744 | 180 | 107 | 232 | 10.7 | 3.205 |
| 400745 | 200 | 115 | 253 | 11.9 | 4.298 |
| 400746 | 225 | 120 | 270 | 13.4 | 5.864 |
| 400747 | 250 | 130 | 292 | 14.8 | 8.000 |
| 400748 | 280 | 140 | 320 | 16.6 | 11.328 |
| 400749 | 315 | 150 | 370 | 18.7 | 15.877 |
