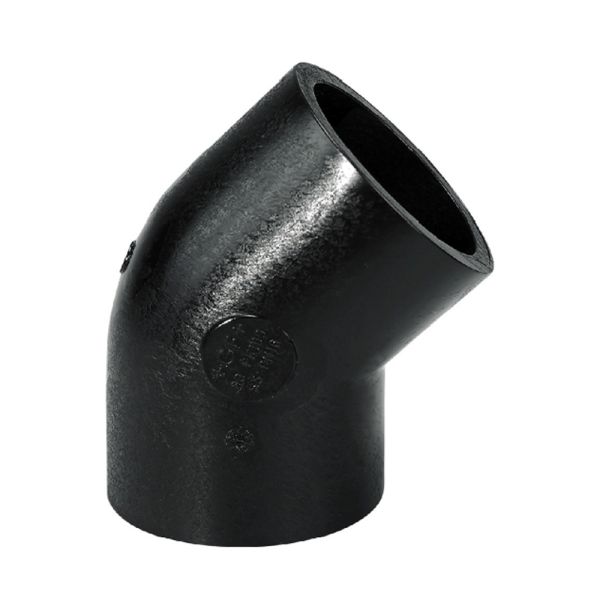

Georg Fischer ecoFIT BF Elbow 45° - 16 Bar

Skip to the beginning of the images gallery

Useful Information

These ecoFIT butt-fusion fittings, from Georg Fischer, are manufactured from heavy-duty and corrosion-resistant polyethylene for pipeline construction. They are suitable for conveying gas and water through ground-layed pipe systems.

These fittings are Infrared (IR Plus^®) compatible suitable for conventional butt-welding according to DVS 2207.

Pressure Rating	16 bar
Temperature Range	-50°C to +60°C
Sizes	20 - 225mm
Colour	Black - RAL 9005

GF-ecofit-bf-elbow-45-diagram

Product Code	d (mm)	L (mm)	L1 (mm)	e (mm)	Weight (kg)
401515	20	32	24	1.9	0.007
401516	25	34	25	2.3	0.013
401517	32	36	25	2.9	0.019
401518	40	39	25	3.7	0.036
401519	50	42	26	4.6	0.059
401520	63	47	29	5.8	0.103
401521	75	49	29	6.8	0.146
401522	90	57	34	8.2	0.241
401523	110	70	43	10.0	0.442
401524	125	79	48	11.4	0.638
401525	140	88	55	12.7	0.902
401526	160	100	60	14.6	1.340
401527	200	124	75	18.2	2.612
401528	225	140	85	20.5	3.638

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
401515	GF ecoFIT BF PE Elbow 45° 16 Bar 20mm	£6.83	20%	£5.46
401516	GF ecoFIT BF PE Elbow 45° 16 Bar 25mm	£7.25	20%	£5.80
401517	GF ecoFIT BF PE Elbow 45° 16 Bar 32mm	£8.78	20%	£7.02
401518	GF ecoFIT BF PE Elbow 45° 16 Bar 40mm	£11.07	20%	£8.86
401519	GF ecoFIT BF PE Elbow 45° 16 Bar 50mm	£12.58	20%	£10.06
401520	GF ecoFIT BF PE Elbow 45° 16 Bar 63mm	£20.90	20%	£16.72
401521	GF ecoFIT BF PE Elbow 45° 16 Bar 75mm	£29.47	20%	£23.58
401522	GF ecoFIT BF PE Elbow 45° 16 Bar 90mm	£36.60	20%	£29.28
401523	GF ecoFIT BF PE Elbow 45° 16 Bar 110mm	£67.35	20%	£53.88
401524	GF ecoFIT BF PE Elbow 45° 16 Bar 125mm	£95.73	20%	£76.58
401525	GF ecoFIT BF PE Elbow 45° 16 Bar 140mm	£135.10	20%	£108.08
401526	GF ecoFIT BF PE Elbow 45° 16 Bar 160mm	£146.05	20%	£116.84
401527	GF ecoFIT BF PE Elbow 45° 16 Bar 200mm	£226.06	20%	£180.85
401528	GF ecoFIT BF PE Elbow 45° 16 Bar 225mm	£256.52	20%	£205.22
