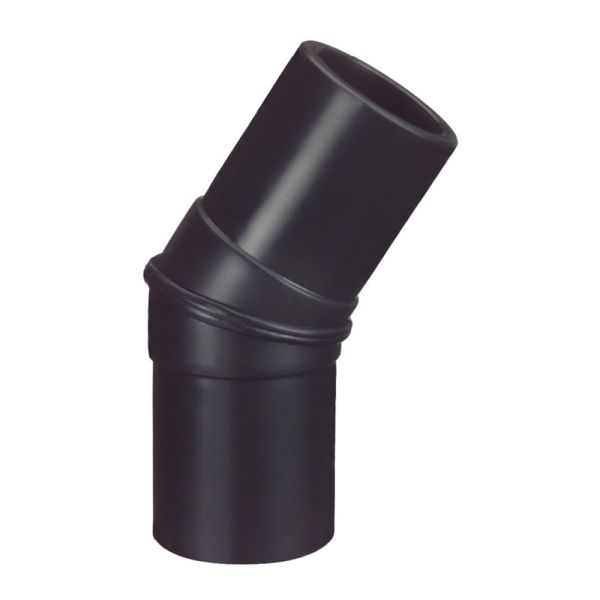

Georg Fischer ecoFIT BF Elbow 30° Long - 16 Bar
Useful Information
These ecoFIT butt-fusion fittings, from Georg Fischer, are manufactured from heavy-duty and corrosion-resistant polyethylene for pipeline construction. They are suitable for conveying both gas and water through ground-layed pipe systems.
| Pressure Rating | 10 bar - Gas 16 bar - Water |
| Temperature Range | -50°C to +60°C |
| Sizes | 32 - 315mm |
| Colour | Black - RAL 9005 |
| Product Code | d (mm) | L (mm) | z (mm) | e (mm) | Weight (kg) |
| 400779 | 32 | 54 | 70 | 3.0 | 0.530 |
| 400780 | 40 | 57 | 80 | 3.7 | 0.530 |
| 400781 | 50 | 63 | 80 | 4.6 | 0.121 |
| 400782 | 63 | 65 | 80 | 5.8 | 0.207 |
| 400783 | 75 | 72 | 90 | 6.8 | 0.311 |
| 400784 | 90 | 81 | 100 | 8.2 | 0.510 |
| 400785 | 110 | 86 | 105 | 10.0 | 0.840 |
| 400786 | 125 | 92 | 115 | 11.4 | 1.174 |
| 400787 | 140 | 92 | 135 | 12.7 | 1.760 |
| 400788 | 160 | 102 | 130 | 14.6 | 2.155 |
| 400789 | 180 | 107 | 140 | 16.4 | 2.911 |
| 400790 | 200 | 116 | 150 | 18.2 | 3.892 |
| 400791 | 225 | 123 | 165 | 20.5 | 5.332 |
| 400792 | 250 | 130 | 190 | 22.7 | 7.307 |
| 400793 | 280 | 140 | 200 | 25.4 | 10.600 |
| 400794 | 315 | 150 | 200 | 28.6 | 12.775 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
