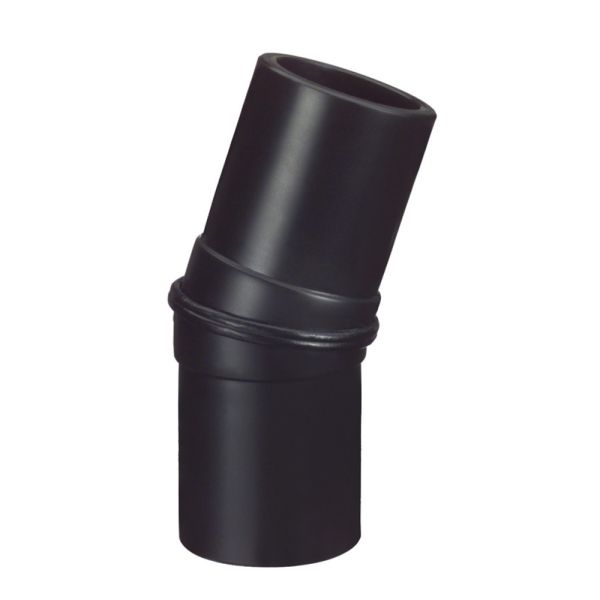

Georg Fischer ecoFIT BF Elbow 15° Long - 10 Bar
Useful Information
These ecoFIT butt-fusion fittings, from Georg Fischer, are manufactured from heavy-duty and corrosion-resistant polyethylene for pipeline construction. They are suitable for conveying gas and water through ground-layed pipe systems.
| Pressure Rating | 5 bar - Gas 10 bar - Water |
| Temperature Range | -50°C to +60°C |
| Sizes | 90 - 315mm |
| Colour | Black - RAL 9005 |
| Product Code | d (mm) | L (mm) | z (mm) | e (mm) | Weight (kg) |
| 400822 | 90 | 81 | 100 | 5.4 | 0.337 |
| 400823 | 110 | 86 | 105 | 6.6 | 0.551 |
| 400824 | 125 | 92 | 115 | 7.4 | 0.728 |
| 400825 | 140 | 120 | 135 | 8.3 | 0.370 |
| 400826 | 160 | 102 | 130 | 9.5 | 1.364 |
| 400827 | 180 | 107 | 140 | 10.7 | 2.040 |
| 400828 | 200 | 116 | 150 | 11.9 | 2.371 |
| 400829 | 225 | 123 | 165 | 13.4 | 3.335 |
| 400830 | 250 | 130 | 190 | 14.8 | 5.830 |
| 400831 | 280 | 140 | 195 | 16.6 | 8.100 |
| 400832 | 315 | 150 | 200 | 18.7 | 7.528 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
