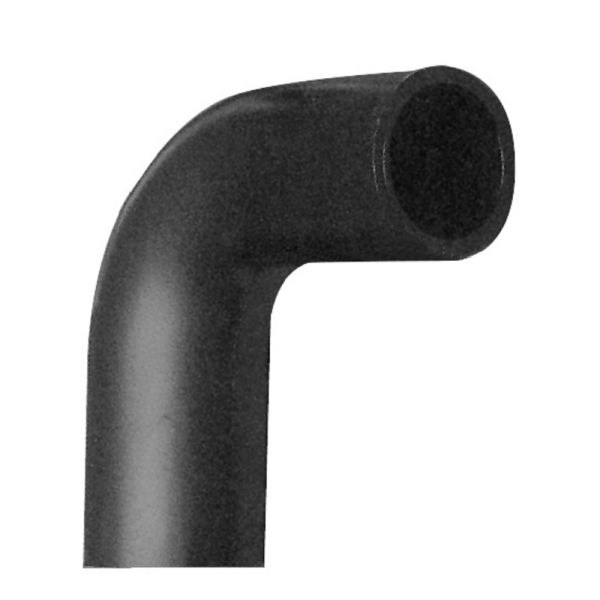

Georg Fischer ecoFIT BF Bend 90° Long - 10 Bar

Georg Fischer ecoFIT BF Bend 90° Long - 10 Bar

Skip to the beginning of the images gallery

Useful Information

These ecoFIT butt-fusion fittings, from Georg Fischer, are manufactured from heavy-duty and corrosion-resistant polyethylene for pipeline construction. They are suitable for conveying gas and water through ground-layed pipe systems.

Bends 355mm through to 800mm are made out of seamless pipe.

Pressure Rating	10 bar - Gas 16 bar - Water
Temperature Range	-50°C to +60°C
Sizes	32 - 800mm
Colour	Black - RAL 9005

GF-ecofit-bf-long-bend-90-diagram

Product Code	d (mm)	L (mm)	z (mm)	e (mm)	Weight (kg)
400857	90	79	168	5.4	0.520
400858	110	82	193	6.6	0.942
400859	125	87	216	7.4	1.300
400860	140	92	232	8.3	1.789
400861	160	98	258	9.5	2.410
400862	180	105	290	10.7	4.000
400863	200	112	317	11.9	6.500
400864	225	120	350	13.4	6.414
400865	250	130	375	14.8	9.940
400866	280	150	430	16.6	13.795
400867	315	150	470	18.7	24.000
400868	355	250	900	21.1	36.700
400869	400	250	980	23.7	49.700
400870	450	250	1070	26.7	66.600
400871	500	280	1200	29.7	87.400
400872	560	280	1290	33.2	116.000
400873	630	280	1400	37.4	159.600
400874	710	350	1900	42.1	317.382
400875	800	350	2000	47.4	389.859

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
400857	GF ecoFIT BF PE Bend 90° Long 10 Bar 90mm	£74.14	20%	£59.31
400858	GF ecoFIT BF PE Bend 90° Long 10 Bar 110mm	£92.72	20%	£74.18
400859	GF ecoFIT BF PE Bend 90° Long 10 Bar 125mm	£107.37	20%	£85.90
400860	GF ecoFIT BF PE Bend 90° Long 10 Bar 140mm	£123.93	20%	£99.14
400861	GF ecoFIT BF PE Bend 90° Long 10 Bar 160mm	£139.92	20%	£111.94
400862	GF ecoFIT BF PE Bend 90° Long 10 Bar 180mm	£223.30	20%	£178.64
400863	GF ecoFIT BF PE Bend 90° Long 10 Bar 200mm	£268.42	20%	£214.74
400864	GF ecoFIT BF PE Bend 90° Long 10 Bar 225mm	£316.57	20%	£253.26
400865	GF ecoFIT BF PE Bend 90° Long 10 Bar 250mm	£399.37	20%	£319.50
400866	GF ecoFIT BF PE Bend 90° Long 10 Bar 280mm	£450.35	20%	£360.28
400867	GF ecoFIT BF PE Bend 90° Long 10 Bar 315mm	£588.21	20%	£470.57
400868	GF ecoFIT BF PE Bend 90° Long 10 Bar 355mm	£1,608.20	20%	£1,286.56
400869	GF ecoFIT BF PE Bend 90° Long 10 Bar 400mm	£2,260.70	20%	£1,808.56
400870	GF ecoFIT BF PE Bend 90° Long 10 Bar 450mm	£3,199.75	20%	£2,559.80
400871	GF ecoFIT BF PE Bend 90° Long 10 Bar 500mm	£4,592.46	20%	£3,673.97
400872	GF ecoFIT BF PE Bend 90° Long 10 Bar 560mm	£5,697.91	20%	£4,558.33
400873	GF ecoFIT BF PE Bend 90° Long 10 Bar 630mm	£7,107.19	20%	£5,685.75
400874	GF ecoFIT BF PE Bend 90° Long 10 Bar 710mm	£11,722.70	20%	£9,378.16
400875	GF ecoFIT BF PE Bend 90° Long 10 Bar 800mm	£18,818.24	20%	£15,054.59
