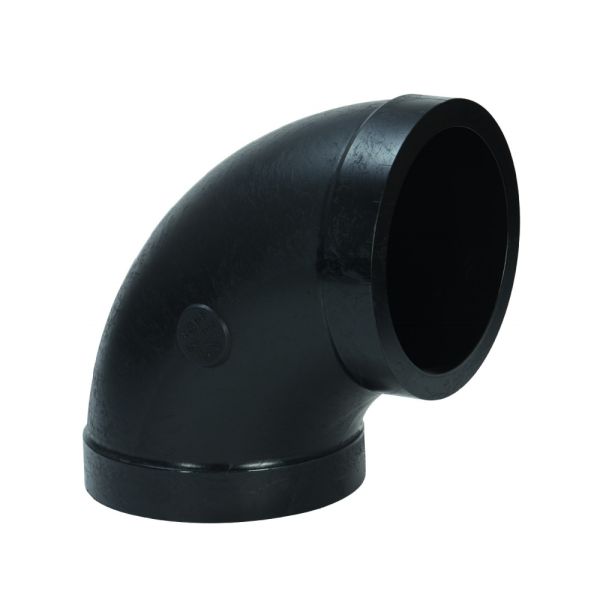

Georg Fischer ecoFIT BF Bend 90° - 16 Bar

Skip to the beginning of the images gallery

Useful Information

These ecoFIT butt-fusion fittings, from Georg Fischer, are manufactured from heavy-duty and corrosion-resistant polyethylene for pipeline construction. They are suitable for conveying gas and water through ground-layed pipe systems.

Bends 20mm through to 225mm are Infrared (IR Plus^®) compatible.

Pressure Rating	16 bar
Temperature Range	-50°C to +60°C
Sizes	20 - 500mm
Colour	Black - RAL 9005

GF-ecofit-bf-bend-90-diagram

Product Code	d (mm)	L (mm)	L1 (mm)	R (mm)	e (mm)	Weight (kg)
401469	20	38	23	15.00	1.9	0.007
401470	25	42	23	19.00	2.3	0.013
401471	32	46	22	24.00	2.9	0.025
401472	40	51	21	30.00	3.7	0.041
401473	50	58	21	37.00	4.6	0.065
401474	63	66	21	45.00	5.8	0.124
401475	75	75	21	71.25	6.8	0.190
401476	90	90	22	85.50	8.2	0.325
401477	110	110	25	104.50	10.0	0.590
401478	125	125	28	116.00	11.4	0.818
401479	140	140	33	131.00	12.7	1.148
401480	160	160	33	151.00	14.6	1.699
401481	180	180	33	171.00	16.4	2.394
401482	200	200	33	190.00	18.2	3.264
401483	225	220	33	210.00	20.5	4.535
401484	250	256	48	232.00	22.7	6.713
401485	280	286	52	263.00	25.4	9.885
401486	315	321	48	297.00	28.6	14.158
401487	355	345	70	330.00	32.3	18.000
401488	400	365	70	350.00	36.3	24.020
401489	450	425	70	400.00	40.9	35.360
401490	500	470	90	445.00	45.5	47.370

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
401469	GF ecoFIT BF PE Bend 90° 16 Bar 20mm	£5.16	20%	£4.13
401470	GF ecoFIT BF PE Bend 90° 16 Bar 25mm	£5.29	20%	£4.23
401471	GF ecoFIT BF PE Bend 90° 16 Bar 32mm	£5.65	20%	£4.52
401472	GF ecoFIT BF PE Bend 90° 16 Bar 40mm	£7.30	20%	£5.84
401473	GF ecoFIT BF PE Bend 90° 16 Bar 50mm	£9.10	20%	£7.28
401474	GF ecoFIT BF PE Bend 90° 16 Bar 63mm	£13.01	20%	£10.41
401475	GF ecoFIT BF PE Bend 90° 16 Bar 75mm	£19.86	20%	£15.89
401476	GF ecoFIT BF PE Bend 90° 16 Bar 90mm	£28.07	20%	£22.46
401477	GF ecoFIT BF PE Bend 90° 16 Bar 110mm	£52.61	20%	£42.09
401478	GF ecoFIT BF PE Bend 90° 16 Bar 125mm	£74.01	20%	£59.21
401479	GF ecoFIT BF PE Bend 90° 16 Bar 140mm	£98.82	20%	£79.06
401480	GF ecoFIT BF PE Bend 90° 16 Bar 160mm	£120.35	20%	£96.28
401481	GF ecoFIT BF PE Bend 90° 16 Bar 180mm	£142.45	20%	£113.96
401482	GF ecoFIT BF PE Bend 90° 16 Bar 200mm	£211.70	20%	£169.36
401483	GF ecoFIT BF PE Bend 90° 16 Bar 225mm	£253.67	20%	£202.94
401484	GF ecoFIT BF PE Bend 90° 16 Bar 250mm	£484.90	20%	£387.92
401485	GF ecoFIT BF PE Bend 90° 16 Bar 280mm	£635.97	20%	£508.78
401486	GF ecoFIT BF PE Bend 90° 16 Bar 315mm	£875.99	20%	£700.79
401487	GF ecoFIT BF PE Bend 90° 16 Bar 355mm	£1,475.02	20%	£1,180.02
401488	GF ecoFIT BF PE Bend 90° 16 Bar 400mm	£2,023.83	20%	£1,619.06
401489	GF ecoFIT BF PE Bend 90° 16 Bar 450mm	£2,173.34	20%	£1,738.67
401490	GF ecoFIT BF PE Bend 90° 16 Bar 500mm	£2,803.63	20%	£2,242.90
