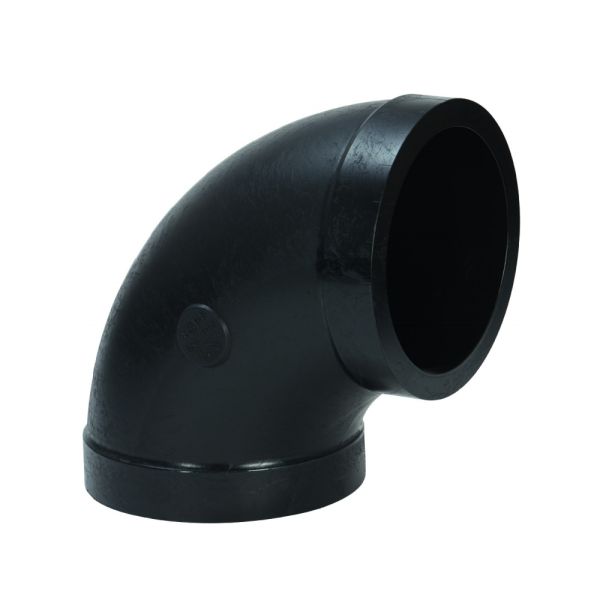

Georg Fischer ecoFIT BF Bend 90° - 10 Bar
Useful Information
These ecoFIT butt-fusion fittings, from Georg Fischer, are manufactured from heavy-duty and corrosion-resistant polyethylene for pipeline construction. They are suitable for conveying gas and water through ground-layed pipe systems.
Bends 50mm through to 225mm are Infrared (IR Plus®) compatible.
| Pressure Rating | 10 bar |
| Temperature Range | -50°C to +60°C |
| Sizes | 50 - 500mm |
| Colour | Black - RAL 9005 |
| Product Code | d (mm) | L (mm) | L1 (mm) | R (mm) | e (mm) | Weight (kg) |
| 401491 | 50 | 58 | 21 | 37.00 | 2.9 | 0.052 |
| 401492 | 63 | 66 | 21 | 45.00 | 3.6 | 0.087 |
| 401493 | 75 | 75 | 21 | 71.25 | 4.5 | 0.133 |
| 401494 | 90 | 90 | 22 | 85.50 | 5.4 | 0.226 |
| 401495 | 110 | 110 | 25 | 104.50 | 6.6 | 0.407 |
| 401496 | 125 | 125 | 28 | 116.00 | 7.3 | 0.556 |
| 401497 | 140 | 140 | 33 | 131.00 | 8.2 | 0.785 |
| 401498 | 160 | 160 | 33 | 151.00 | 9.4 | 1.156 |
| 401499 | 180 | 180 | 33 | 171.00 | 10.6 | 1.619 |
| 401500 | 200 | 200 | 33 | 190.00 | 11.7 | 2.208 |
| 401501 | 225 | 220 | 33 | 210.00 | 12.9 | 3.039 |
| 401502 | 250 | 256 | 48 | 232.00 | 14.2 | 4.645 |
| 401503 | 280 | 286 | 48 | 263.00 | 15.9 | 7.020 |
| 401504 | 315 | 321 | 48 | 297.00 | 17.9 | 10.099 |
| 401505 | 355 | 345 | 70 | 330.00 | 21.1 | 12.580 |
| 401506 | 400 | 365 | 70 | 350.00 | 23.7 | 16.680 |
| 401507 | 450 | 425 | 70 | 400.00 | 26.7 | 24.760 |
| 401508 | 500 | 470 | 90 | 445.00 | 29.7 | 33.640 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
