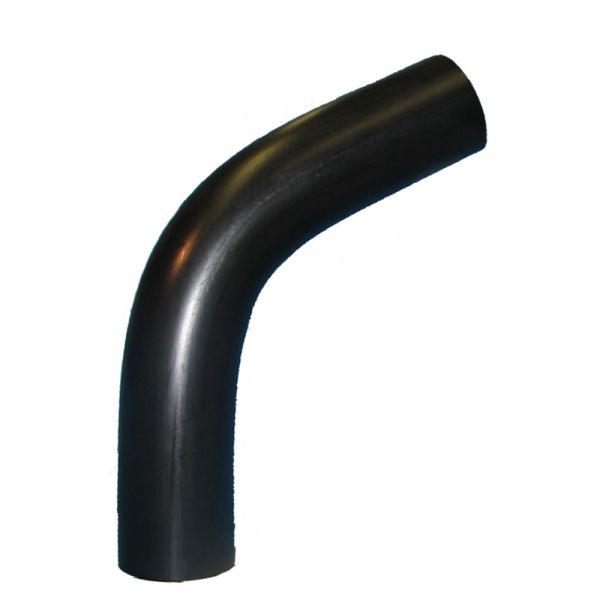

Georg Fischer ecoFIT BF Bend 60° Long - 10 Bar

Georg Fischer ecoFIT BF Bend 60° Long - 10 Bar

Skip to the beginning of the images gallery

Useful Information

These ecoFIT butt-fusion fittings, from Georg Fischer, are manufactured from heavy-duty and corrosion-resistant polyethylene for pipeline construction. They are suitable for conveying gas and water through ground-layed pipe systems.

Pressure Rating	5 bar - Gas 10 bar - Water
Temperature Range	-50°C to +60°C
Sizes	90 - 630mm
Colour	Black - RAL 9005

GF-ecofit-bf-long-bend-60-diagram

Product Code	d (mm)	R (mm)	L (mm)	z (mm)	e (mm)	Weight (kg)
400898	90	135	100	193	5.4	0.600
400899	110	165	150	270	6.6	1.280
400900	125	188	150	283	7.4	1.300
400901	140	210	150	296	8.3	1.800
400902	160	240	150	313	9.5	3.160
400903	180	270	150	330	10.7	3.190
400904	200	300	150	348	11.9	4.200
400905	225	338	150	370	13.4	5.600
400906	250	375	250	500	14.8	9.250
400907	280	420	250	530	16.6	15.000
400908	315	473	250	612	18.7	19.500
400909	355	533	300	690	21.1	30.100
400910	400	600	300	730	23.7	38.200
400911	450	675	300	780	26.7	53.700
400912	500	750	350	880	29.7	73.900
400913	560	840	350	930	33.2	98.200
400914	630	945	350	1000	37.4	132.300

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
400898	GF ecoFIT BF PE Bend 60° Long 10 Bar 90mm	£151.46	20%	£121.17
400899	GF ecoFIT BF PE Bend 60° Long 10 Bar 110mm	£191.04	20%	£152.83
400900	GF ecoFIT BF PE Bend 60° Long 10 Bar 125mm	£218.00	20%	£174.40
400901	GF ecoFIT BF PE Bend 60° Long 10 Bar 140mm	£249.22	20%	£199.38
400902	GF ecoFIT BF PE Bend 60° Long 10 Bar 160mm	£278.29	20%	£222.63
400903	GF ecoFIT BF PE Bend 60° Long 10 Bar 180mm	£441.82	20%	£353.46
400904	GF ecoFIT BF PE Bend 60° Long 10 Bar 200mm	£532.25	20%	£425.80
400905	GF ecoFIT BF PE Bend 60° Long 10 Bar 225mm	£627.37	20%	£501.90
400906	GF ecoFIT BF PE Bend 60° Long 10 Bar 250mm	£784.98	20%	£627.98
400907	GF ecoFIT BF PE Bend 60° Long 10 Bar 280mm	£876.29	20%	£701.03
400908	GF ecoFIT BF PE Bend 60° Long 10 Bar 315mm	£1,139.53	20%	£911.62
400909	GF ecoFIT BF PE Bend 60° Long 10 Bar 355mm	£1,674.73	20%	£1,339.78
400910	GF ecoFIT BF PE Bend 60° Long 10 Bar 400mm	£2,390.94	20%	£1,912.75
400911	GF ecoFIT BF PE Bend 60° Long 10 Bar 450mm	£2,908.79	20%	£2,327.03
400912	GF ecoFIT BF PE Bend 60° Long 10 Bar 500mm	£4,174.89	20%	£3,339.91
400913	GF ecoFIT BF PE Bend 60° Long 10 Bar 560mm	£5,180.19	20%	£4,144.15
400914	GF ecoFIT BF PE Bend 60° Long 10 Bar 630mm	£6,461.25	20%	£5,169.00
