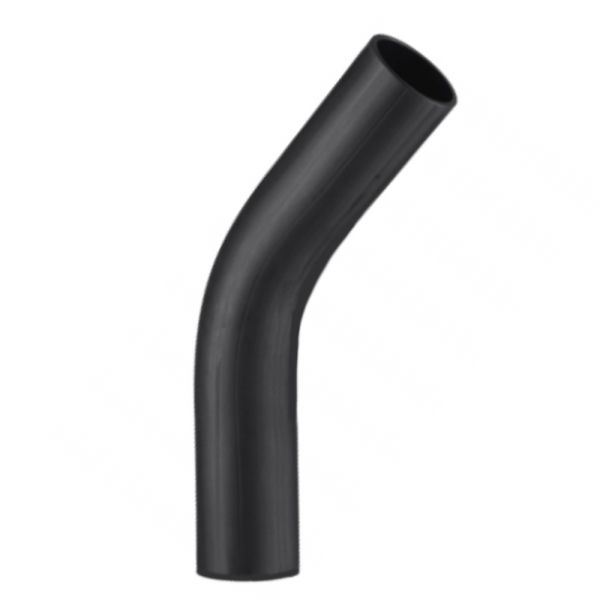

Georg Fischer ecoFIT BF Bend 30° Long - 16 Bar

Georg Fischer ecoFIT BF Bend 30° Long - 16 Bar

Skip to the beginning of the images gallery

Useful Information

These ecoFIT butt-fusion fittings, from Georg Fischer, are manufactured from heavy-duty and corrosion-resistant polyethylene for pipeline construction. They are suitable for conveying gas and water through ground-layed pipe systems.

Pressure Rating	10 bar - Gas 16 bar - Water
Temperature Range	-50°C to +60°C
Sizes	32 - 630mm
Colour	Black - RAL 9005

GF-ecofit-bf-long-bend-30-diagram

Product Code	d (mm)	R (mm)	L (mm)	z (mm)	e (mm)	Weight (kg)
400915	32	48	80	113	2.9	0.077
400916	40	60	80	116	3.7	0.120
400917	50	75	100	140	4.6	0.200
400918	63	95	100	150	5.8	0.400
400919	75	113	100	155	6.8	0.520
400920	90	135	100	160	8.2	0.760
400921	110	165	150	219	10.0	1.689
400922	125	188	150	225	11.4	2.096
400923	140	210	150	231	12.7	2.200
400924	160	240	150	239	14.6	3.650
400925	180	270	150	247	16.4	4.782
400926	200	300	150	255	18.2	5.777
400927	225	338	150	266	20.5	6.300
400928	250	375	250	385	22.7	13.100
400929	280	420	250	400	25.4	16.300
400930	315	473	250	460	28.6	21.850
400931	355	533	300	540	32.3	34.900
400932	400	600	300	560	36.4	45.900
400933	450	675	300	580	40.9	60.200
400934	500	750	350	630	45.5	83.300
400935	560	840	350	680	50.9	108.600
400936	630	945	350	730	57.3	148.300

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
400915	GF ecoFIT BF PE Bend 30° Long 16 Bar 32mm	£71.13	20%	£56.90
400916	GF ecoFIT BF PE Bend 30° Long 16 Bar 40mm	£77.64	20%	£62.11
400917	GF ecoFIT BF PE Bend 30° Long 16 Bar 50mm	£107.05	20%	£85.64
400918	GF ecoFIT BF PE Bend 30° Long 16 Bar 63mm	£149.76	20%	£119.81
400919	GF ecoFIT BF PE Bend 30° Long 16 Bar 75mm	£164.11	20%	£131.29
400920	GF ecoFIT BF PE Bend 30° Long 16 Bar 90mm	£181.73	20%	£145.38
400921	GF ecoFIT BF PE Bend 30° Long 16 Bar 110mm	£235.12	20%	£188.10
400922	GF ecoFIT BF PE Bend 30° Long 16 Bar 125mm	£262.02	20%	£209.62
400923	GF ecoFIT BF PE Bend 30° Long 16 Bar 140mm	£294.79	20%	£235.83
400924	GF ecoFIT BF PE Bend 30° Long 16 Bar 160mm	£346.03	20%	£276.82
400925	GF ecoFIT BF PE Bend 30° Long 16 Bar 180mm	£578.91	20%	£463.13
400926	GF ecoFIT BF PE Bend 30° Long 16 Bar 200mm	£701.30	20%	£561.04
400927	GF ecoFIT BF PE Bend 30° Long 16 Bar 225mm	£836.98	20%	£669.58
400928	GF ecoFIT BF PE Bend 30° Long 16 Bar 250mm	£975.89	20%	£780.71
400929	GF ecoFIT BF PE Bend 30° Long 16 Bar 280mm	£1,159.97	20%	£927.98
400930	GF ecoFIT BF PE Bend 30° Long 16 Bar 315mm	£1,407.01	20%	£1,125.61
400931	GF ecoFIT BF PE Bend 30° Long 16 Bar 355mm	£2,573.93	20%	£2,059.14
400932	GF ecoFIT BF PE Bend 30° Long 16 Bar 400mm	£2,830.88	20%	£2,264.70
400933	GF ecoFIT BF PE Bend 30° Long 16 Bar 450mm	£3,478.78	20%	£2,783.02
400934	GF ecoFIT BF PE Bend 30° Long 16 Bar 500mm	£4,872.52	20%	£3,898.02
400935	GF ecoFIT BF PE Bend 30° Long 16 Bar 560mm	£6,100.15	20%	£4,880.12
400936	GF ecoFIT BF PE Bend 30° Long 16 Bar 630mm	£7,839.38	20%	£6,271.50
