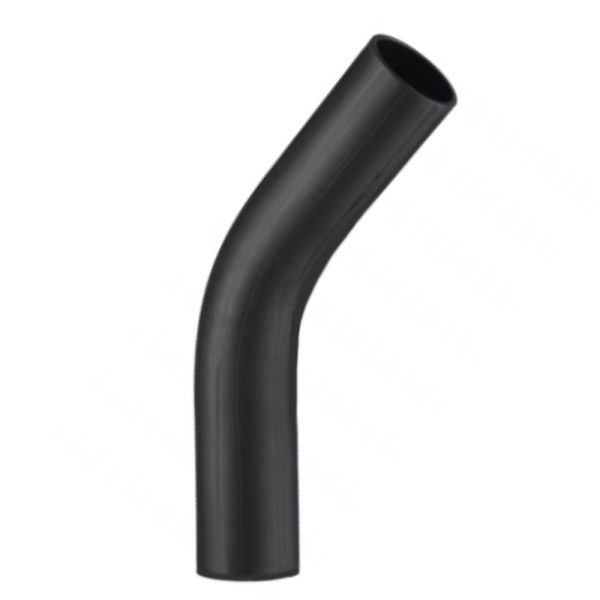

Georg Fischer ecoFIT BF Bend 11° Long - 10 Bar
Useful Information
These ecoFIT butt-fusion fittings, from Georg Fischer, are manufactured from heavy-duty and corrosion-resistant polyethylene for pipeline construction. They are suitable for conveying gas and water through ground-layed pipe systems.
| Pressure Rating | 5 bar - Gas 10 bar - Water |
| Temperature Range | -50°C to +60°C |
| Sizes | 90 - 630mm |
| Colour | Black - RAL 9005 |
| Product Code | d (mm) | R (mm) | L (mm) | z (mm) | e (mm) | Weight (kg) |
| 401015 | 90 | 135 | 100 | 160 | 5.4 | 0.500 |
| 401016 | 110 | 165 | 150 | 219 | 6.6 | 1.060 |
| 401017 | 125 | 188 | 150 | 225 | 7.4 | 1.100 |
| 401018 | 140 | 210 | 150 | 231 | 8.3 | 1.720 |
| 401019 | 160 | 240 | 150 | 239 | 9.5 | 2.565 |
| 401020 | 180 | 270 | 150 | 247 | 10.7 | 3.389 |
| 401021 | 200 | 300 | 150 | 255 | 11.9 | 4.213 |
| 401022 | 225 | 338 | 150 | 266 | 13.4 | 7.540 |
| 401023 | 250 | 375 | 250 | 385 | 14.8 | 11.600 |
| 401024 | 280 | 420 | 250 | 400 | 16.6 | 12.800 |
| 401025 | 315 | 473 | 250 | 460 | 18.7 | 25.000 |
| 401026 | 355 | 533 | 300 | 540 | 21.1 | 22.700 |
| 401027 | 400 | 600 | 300 | 560 | 23.7 | 29.800 |
| 401028 | 450 | 675 | 300 | 580 | 26.7 | 39.100 |
| 401029 | 500 | 750 | 350 | 650 | 29.7 | 54.000 |
| 401030 | 560 | 840 | 350 | 680 | 33.2 | 70.300 |
| 401031 | 630 | 945 | 350 | 730 | 37.4 | 95.800 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
