Operating Temperature: 0-100°C (For cold and hot potable water)
Maximum Operating Pressure: 16 bar/ 1600kPa (For cold and hot potable water)
Material: Gunmetal (CuSn5Zn5Pb2-C)
Connection Type: Press-fit technology with leak detection
Installation: Suitable for both surface-mounted and concealed systems
Type Of Pressing Profile: M
Description

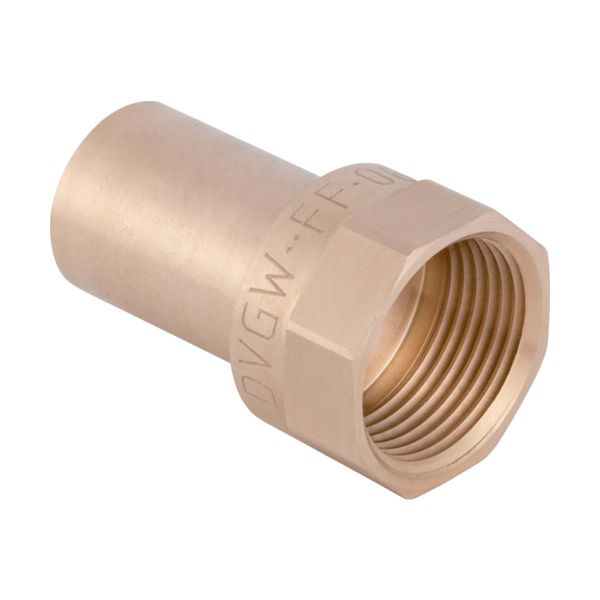

The Geberit Mapress Copper Plain Female Adaptor is designed to securely connect copper pipes to components with a female thread, such as valves or fittings, in a press-fit system. This fitting is suitable for use in potable water installations, as well as open and closed heating and cooling circuits. The plain adaptor offers quick and safe installation without the need for welding or soldering, making it an ideal choice for both new projects and renovations.
Key Features
Durable Gunmetal Construction: Made from high-quality gunmetal (CuSn5Zn5Pb2-C), the female adaptor provides excellent corrosion resistance and long-term durability, making it ideal for use in both potable water and heating/cooling systems.
Press-Fit Technology: The press-fit system eliminates the need for hot works like welding or soldering, significantly reducing installation time and eliminating the risk of fire hazards, especially in residential and confined spaces.
Leak Detection: Designed to be leaky if unpressed, this feature allows installers to easily identify any unpressed connections during installation, ensuring the system is fully secure before use.
Reliable Sealing: The fitting includes high-performance sealing to ensure a leak-proof connection that can withstand the pressure and temperature requirements of various systems.
Clean Installation: The seal rings are protected from dirt during the installation process, ensuring a clean and hygienic connection, which is particularly important in potable water systems.
Simple and Safe: The press-fit system provides a simple, fast, and fire-free installation process, reducing labour costs and improving job-site safety.
Universal Application: Suitable for both surface-mounted and concealed installations, the adaptor can be used in a wide range of plumbing systems, offering flexibility for residential and industrial applications
SKU
Art. no.
DN
d, ø (mm)
Rp (Inches)
L (cm)
H (cm)
486839
63558
12 / 15
15
1/2
4.6
3.3
486840
63559
15
18
1/2
4.6
3.3
486841
63560
15 / 20
18
3/4
4.8
3.3
486842
63561
20 / 15
22
1/2
4.6
3.3
486843
63562
20
22
3/4
4.9
3.4
486844
63564
32 / 25
35
1
6.3
4.6
486845
63565
50
54
2
8.5
6.2
Application Purposes
Operating Temperature
Maximum Operating Pressure
Liquid Media
For cold and hot potable water
0–100 °C
16 bar / 1600 kPa (5)
For cooling and heating water without antifreeze agent
0–100 °C
16 bar / 1600 kPa (4)
For cooling and heating water with antifreeze agent
-30 – +120 °C
16 bar / 1600 kPa (4)
For district heating water ≤ 120 °C
0–120 °C
16 bar / 1600 kPa (4) (9)
For service water and process water
0–120 °C
16 bar / 1600 kPa (7)
Gaseous Media
For compressed air (purity class oil 2-3) (1)
0–100 °C
12 bar / 1200 kPa (6)
For compressed air (purity class oil 0-X) (1)
0–100 °C
12 bar / 1200 kPa (6)
For negative pressure (2)
0–100 °C
Abs. ≥ 0,2 bar/20 kPa
For inert gases (e.g. nitrogen)
0–100 °C
12 bar / 1200 kPa6)
For natural gases
-20 – +70 °C
MOP 5 / GT 1
For liquefied gases
-20 – +70 °C
MOP 5 / GT 1
(1) Usable negative pressure for Geberit piping systems: The usable negative pressure results from the air pressure at the installation site minus the absolute pressure of 200 mbar. Example: 980 mbar air pressure - 200 mbar absolute pressure = 780 mbar usable negative pressure in the piping system
(2) Usable negative pressure for Geberit piping systems: The usable negative pressure is calculated on the basis of the air pressure at the place of installation minus the absolute pressure of 200 mbar. Example: 980 mbar air pressure - 200 mbar absolute pressure = 780 mbar usable negative pressure in the piping system
(3) Lifetime with collector standstill: 200 h/a at 180 °C; 60 h/a at 200 °C; total 500 h/lifetime at 220 °C
(4) Use of inhibitors, corrosion-protection agents, antifreeze agents only after approval by Geberit
(5) 10 bar / 1000 kPa for MasterFix and MeplaFix
(6) Approved up to d54 mm
(7) Following Geberit approval
(8) Oil purity class in accordance with ISO 8573-1:2010E; for details on moisture and particles, see technical information "Geberit Piping Systems for Compressed Air Installations"
(9) Not for fittings with EPDM, black seal rings
