Operating Temperature: 0-100°C (For cold and hot potable water)
Maximum Operating Pressure: 16 bar/ 1600kPa (For cold and hot potable water)
Material: Gunmetal (CuSn5Zn5Pb2-C), brass union nut
Seal Ring: CIIR black seal ring, flat gasket made of EPDM
Media Temperature: 0°C to 100°C with flat EPDM gasket
Connection Technology: Press-fit with pressing indicator
Leak Detection: Leaky if unpressed
Applications: Potable water systems, open and closed heating and cooling circuits
Installation: Suitable for both surface-mounted and concealed installations
Type Of Pressing Profile: M
Description

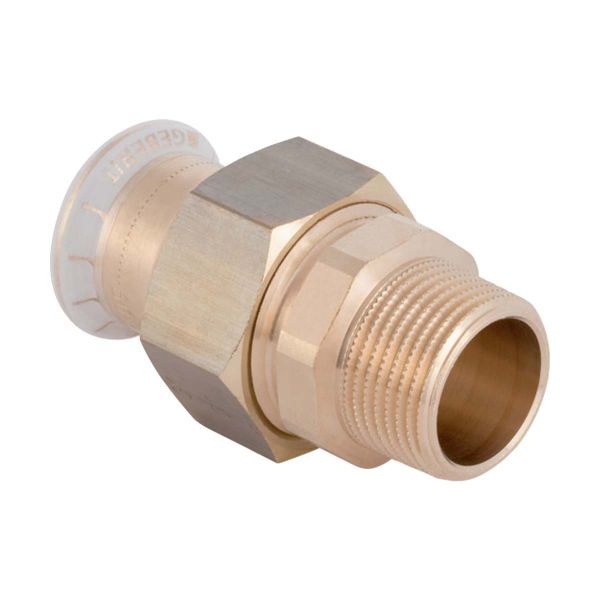

The Geberit Mapress Male Threaded Union is designed to provide a secure connection between copper piping systems and threaded components, such as valves, pumps, or other fittings. This union allows for easy assembly and disassembly of threaded joints, making it ideal for installations where maintenance or replacement of components is required. It is suitable for use in potable water systems, as well as heating and cooling circuits.
Key Features
Durable Gunmetal Construction: Manufactured from high-quality gunmetal (CuSn5Zn5Pb2-C), this union offers excellent resistance to corrosion, ensuring long-lasting performance in demanding environments such as potable water, heating, and cooling systems.
Brass Union Nut: The union nut is made from brass, providing a strong and reliable mechanical connection between the press-fit socket and the threaded component, ensuring a secure and leak-free joint.
Leak Detection: The union is designed to be leaky if unpressed, helping installers quickly identify unpressed connections during installation, ensuring proper assembly.
High-Quality Seals: The CIIR black seal ring provides a reliable and leak-proof connection, while the flat EPDM gasket ensures a secure seal in applications with media temperatures ranging from 0°C to 100°C.
Safe and Easy Installation: The press-fit connection eliminates the need for hot works, such as welding or soldering, reducing installation time, labour costs, and the risk of fire hazards, particularly in confined or residential areas.
Easy Identification: With pressing indicators and transparent protection plugs, the union allows for easy visual confirmation of correct installation and prevents confusion with third-party products.
Versatile Application: Suitable for use in surface-mounted or concealed systems, the Geberit Mapress Male Threaded Union is ideal for both new installations and renovations in residential, industrial, or commercial plumbing systems.
SKU
Art. no.
DN
d, ø (mm)
R (inch)
G (inch)
L (cm)
H (cm)
486824
65532
12 / 15
15
1/2
3/4
6.1
4.1
486833
65533
15
18
1/2
3/4
6.1
4.1
486827
65534
20 / 15
22
1/2
1
6.7
4.6
486829
65535
25
28
1
1 1/4
7.5
5.2
486830
65536
32
35
1 1/4
1 1/2
8
5.4
486831
65537
40
42
1 1/2
1 3/4
8.5
5.5
486832
65538
50
54
2
2 3/8
9.7
6.2
486825
65541
12 / 20
15
3/4
3/4
6.3
4.3
486834
65542
15 / 20
18
3/4
3/4
6.3
4.3
486828
65543
20
22
3/4
1
6.8
4.7
486826
65544
20 / 25
22
1
1
6.9
4.8
Application Purposes
Operating Temperature
Maximum Operating Pressure
Liquid Media
For cold and hot potable water
0–100 °C
16 bar / 1600 kPa (5)
For cooling and heating water without antifreeze agent
0–100 °C
16 bar / 1600 kPa (4)
For cooling and heating water with antifreeze agent
-30 – +120 °C
16 bar / 1600 kPa (4)
For district heating water ≤ 120 °C
0–120 °C
16 bar / 1600 kPa (4) (9)
For service water and process water
0–120 °C
16 bar / 1600 kPa (7)
Gaseous Media
For compressed air (purity class oil 2-3) (1)
0–100 °C
12 bar / 1200 kPa (6)
For compressed air (purity class oil 0-X) (1)
0–100 °C
12 bar / 1200 kPa (6)
For negative pressure (2)
0–100 °C
Abs. ≥ 0,2 bar/20 kPa
For inert gases (e.g. nitrogen)
0–100 °C
12 bar / 1200 kPa6)
For natural gases
-20 – +70 °C
MOP 5 / GT 1
For liquefied gases
-20 – +70 °C
MOP 5 / GT 1
(1) Usable negative pressure for Geberit piping systems: The usable negative pressure results from the air pressure at the installation site minus the absolute pressure of 200 mbar. Example: 980 mbar air pressure - 200 mbar absolute pressure = 780 mbar usable negative pressure in the piping system
(2) Usable negative pressure for Geberit piping systems: The usable negative pressure is calculated on the basis of the air pressure at the place of installation minus the absolute pressure of 200 mbar. Example: 980 mbar air pressure - 200 mbar absolute pressure = 780 mbar usable negative pressure in the piping system
(3) Lifetime with collector standstill: 200 h/a at 180 °C; 60 h/a at 200 °C; total 500 h/lifetime at 220 °C
(4) Use of inhibitors, corrosion-protection agents, antifreeze agents only after approval by Geberit
(5) 10 bar / 1000 kPa for MasterFix and MeplaFix
(6) Approved up to d54 mm
(7) Following Geberit approval
(8) Oil purity class in accordance with ISO 8573-1:2010E; for details on moisture and particles, see technical information "Geberit Piping Systems for Compressed Air Installations"
(9) Not for fittings with EPDM, black seal rings
