Operating Temperature: 0-100°C (For cold and hot potable water)
Maximum Operating Pressure: 16 bar/ 1600kPa (For cold and hot potable water)
Seal Ring: CIIR black (up to 54 mm), EPDM black (over 54 mm)
Connection Technology: Press-fit with pressing indicator
Leak Detection: Leaky if unpressed (up to 54 mm)
Applications: Potable water installations, heating and cooling circuits
Installation: Suitable for surface-mounted and concealed systems
Type Of Pressing Profile: M
Description

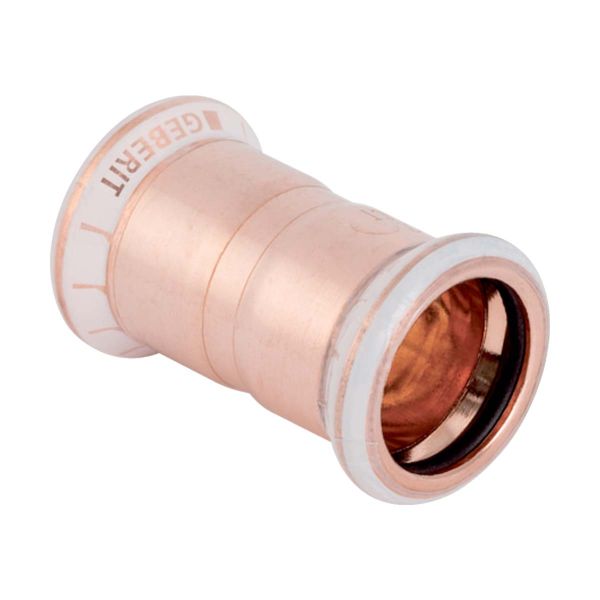

The Geberit Mapress Copper Coupling is designed to securely connect two copper pipes in a press-fit system, ensuring a reliable and long-lasting joint. This coupling is ideal for potable water installations and can also be used in both open and closed heating or cooling circuits. Its press-fit technology enables fast and efficient installation without the need for hot works, making it a safe and economical solution for various plumbing projects.
Key Features
High-Quality Copper Material: Made from Cu-DHP copper CW024A (EN 1412), the coupling fitting ensures durability, excellent conductivity, and corrosion resistance.
Safe and Efficient Installation: The press-fit technology eliminates the need for welding or soldering, reducing fire hazards and lowering labour costs.
Leak Detection: Fittings are leaky if unpressed up to diameters of 54 mm, ensuring that any missed connections are easily detected before finalising the installation.
Reliable Sealing: Fitted with CIIR black seal rings for sizes up to 54 mm, and EPDM black seal rings for sizes over 54 mm, offering excellent sealing performance.
Universal Application: Suitable for both surface-mounted and concealed installations, the coupling can be used in a variety of plumbing and heating systems.
Colour Indicators: Features transparent protection plugs and colour-coded indicator rings, making it easy to identify product materials and application ranges, preventing mix-ups with third-party products.
SKU
Article Number
DN
d
L
Z
486693
62002
12
15 mm
4.8 cm
0.8 cm
486694
62003
15
18 mm
4.8 cm
0.8 cm
486695
62004
20
22 mm
5 cm
0.8 cm
486696
62005
25
28 mm
5.4 cm
0.8 cm
486697
62006
32
35 mm
6.2 cm
1 cm
486698
62007
40
42 mm
7.1 cm
1.1 cm
486699
62008
50
54 mm
8.3 cm
1.3 cm
486700
62010
65
66.7 mm
12.7 cm
2.7 cm
486701
62011
65
76.1 mm
12.7 cm
2.1 cm
486702
62012
80
88.9 mm
14.5 cm
2.5 cm
486703
62013
100
108 mm
17.6 cm
2.6 cm
Application Purposes
Operating Temperature
Maximum Operating Pressure
Liquid Media
For cold and hot potable water
0–100 °C
16 bar / 1600 kPa (5)
For cooling and heating water without antifreeze agent
0–100 °C
16 bar / 1600 kPa (4)
For cooling and heating water with antifreeze agent
-30 – +120 °C
16 bar / 1600 kPa (4)
For district heating water ≤ 120 °C
0–120 °C
16 bar / 1600 kPa (4) (9)
For service water and process water
0–120 °C
16 bar / 1600 kPa (7)
Gaseous Media
For compressed air (purity class oil 2-3) (1)
0–100 °C
12 bar / 1200 kPa (6)
For compressed air (purity class oil 0-X) (1)
0–100 °C
12 bar / 1200 kPa (6)
For negative pressure (2)
0–100 °C
Abs. ≥ 0,2 bar/20 kPa
For inert gases (e.g. nitrogen)
0–100 °C
12 bar / 1200 kPa6)
For natural gases
-20 – +70 °C
MOP 5 / GT 1
For liquefied gases
-20 – +70 °C
MOP 5 / GT 1
(1) Usable negative pressure for Geberit piping systems: The usable negative pressure results from the air pressure at the installation site minus the absolute pressure of 200 mbar. Example: 980 mbar air pressure - 200 mbar absolute pressure = 780 mbar usable negative pressure in the piping system
(2) Usable negative pressure for Geberit piping systems: The usable negative pressure is calculated on the basis of the air pressure at the place of installation minus the absolute pressure of 200 mbar. Example: 980 mbar air pressure - 200 mbar absolute pressure = 780 mbar usable negative pressure in the piping system
(3) Lifetime with collector standstill: 200 h/a at 180 °C; 60 h/a at 200 °C; total 500 h/lifetime at 220 °C
(4) Use of inhibitors, corrosion-protection agents, antifreeze agents only after approval by Geberit
(5) 10 bar / 1000 kPa for MasterFix and MeplaFix
(6) Approved up to d54 mm
(7) Following Geberit approval
(8) Oil purity class in accordance with ISO 8573-1:2010E; for details on moisture and particles, see technical information "Geberit Piping Systems for Compressed Air Installations"
(9) Not for fittings with EPDM, black seal rings
