Applications: Commercial and industrial drainage systems
Certification: BBA approved
Description

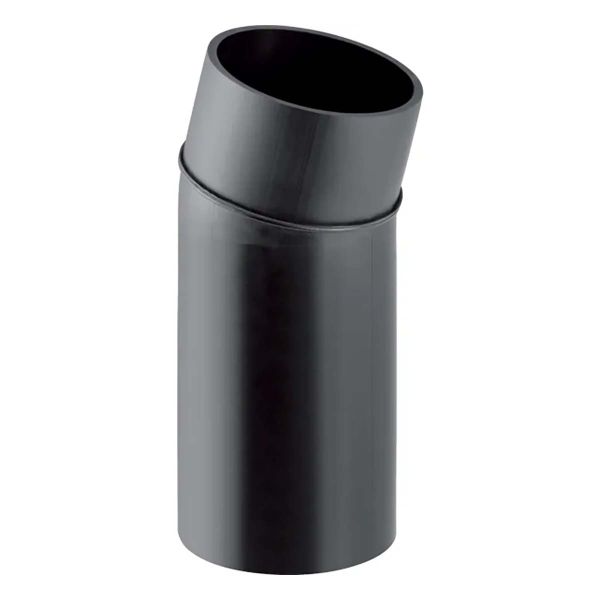

This high-performance bend features an extended leg for flexible installation in building and site drainage systems. Manufactured from PE-HD, it is UV-resistant and robust enough for demanding environments. Designed for use in both horizontal and vertical transitions, the long leg allows for simplified welding and alignment, especially in confined or complex layouts.
Key Features & Benefits
Long leg for easier alignment and connection
Fabricated from UV-resistant, durable PE-HD
Allows electrofusion welding on the long side
Smooth internal bore for uninterrupted flowIdeal for building drainage and site applications
SKU
Geberit Code
DN
d (mm)
Arc °
X1 (cm)
X2 (cm)
K1 Max (cm)
K 2 Max (cm)
R (cm)
489197
367.015.16.1
100
110
15
18
7
15.5
4.5
489198
369.015.16.1
150
160
15
7.5
7.5
4.5
4.5
489199
367.030.16.1
100
110
30
19.5
8.5
15.5
4.5
489200
369.030.16.1
150
160
30
9.5
9.5
4.5
4.5
489201
367.046.16.1
100
110
45
14.7
6
11
2.5
489202
379.055.16.1
30
32
90
10
3
7
3
489203
360.055.16.1
40
40
90
15
3
12
3
489204
363.055.16.1
56
56
90
21
4
17
4
489205
367.055.16.1
100
110
90
27
10
17
10
489206
368.055.16.1
125
125
90
20
11
9
11
