Elbow 90° PVDF/PE100
Useful Information

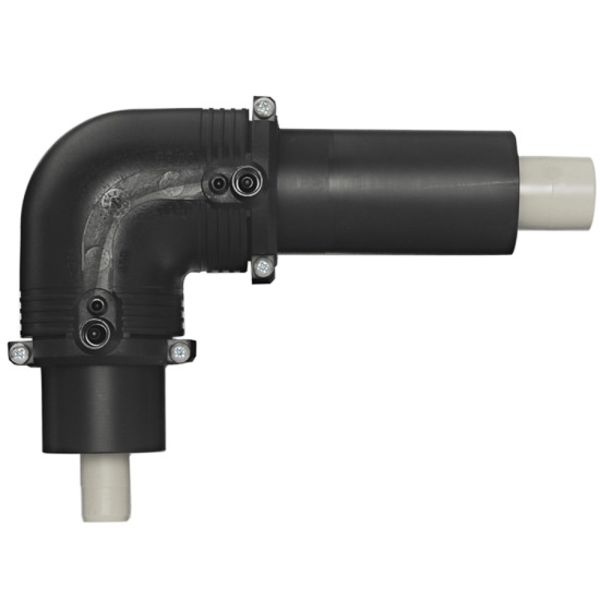

These 90° elbows are made from PVDF and PE and are designed for use in dual containment systems.
Tangit and Dytex option are both available.
| Pressure Rating | 10 - 16 bar |
| Sizes | 20mm - 63mm |
| Product Code | PN (bar) | D (mm) | d (mm) | Weight (kg) |
| 396795 | 16 - 16 | 50 | 20 | 0.472 |
| 396796 | 16 - 16 | 50 | 25 | 0.507 |
| 396797 | 16 - 16 | 63 | 32 | 0.809 |
| 396798 | 16 - 16 | 75 | 40 | 1.391 |
| 396799 | 16 - 10 | 90 | 50 | 1.902 |
| 396800 | 16 - 10 | 110 | 63 | 2.986 |
| D1 (mm) | ZA1 (mm) | ZA2 (mm) | L1 (mm) | Zi1 (mm) | Zi2 (mm) |
| 66 | 105 | 175 | 71 | 141 | 176 |
| 66 | 105 | 175 | 71 | 143 | 174 |
| 81 | 120 | 190 | 81 | 160 | 187 |
| 97 | 145 | 225 | 94 | 188 | 220 |
| 113 | 170 | 260 | 110 | 216 | 252 |
| 136 | 210 | 310 | 132 | 260 | 298 |
