PVCu Full Face PN10/16
Useful Information
Technical Specification
- Manufacturer: Effast
- Material: PVCu (Polyvinyl Chloride Unplasticised)
- Connection Type: Plain End (solvent weld)
- Flange Standard: BS EN 1092-1 PN10/16
- Pressure Rating: 15 bar at 20°C
- Operating Temperature: 5°C to +60°C
- Size Range: 1/2" to 4"
Description

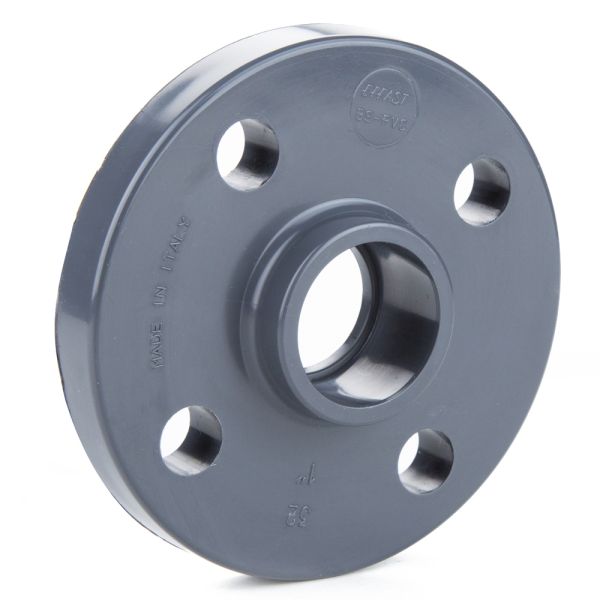

This full face flange provides a strong and secure method for connecting PVC pipework to valves, equipment, or other flanged fittings. Designed for solvent-weld systems, it must be used with a suitable gasket and bolt set for a reliable, leak-free seal. Drilled to BS EN 1092-1 PN10/16 standards, it ensures compatibility with a wide range of industrial applications.
Key Features & Benefits
- Full face flange for PVC pipe connections
- Requires solvent cement for pipe jointing
- Drilled to BS EN 1092-1 (formerly BS 4504) PN10/16
- Compatible with gaskets and bolt sets for flanged joints
- Durable and corrosion-resistant PVCu construction
- Pressure rated to 15 bar at 20°C
| SKU | Supplier Code | Nominal Code (inch) | L (mm) | Z (mm) | E (mm) | f (mm) | I (mm) | S (mm) | No. of Holes |
| 356767 | RFAFNA0200 | 1/2 | 17 | 5 | 95 | 14 | 65 | 8 | 4 |
| 356768 | RFAFNA0250 | 3/4 | 20 | 5 | 105 | 14 | 75 | 9 | 4 |
| 356769 | RFAFNA0320 | 1 | 23 | 5 | 115 | 14 | 85 | 16 | 4 |
| 356770 | RFAFNA0400 | 1 1/4 | 27 | 5 | 142 | 18 | 100 | 17 | 4 |
| 356771 | RFAFNA0500 | 1 1/2 | 32 | 5 | 152 | 18 | 110 | 17 | 4 |
| 356772 | RFAFNA0630 | 2 | 38 | 5 | 165 | 18 | 125 | 20 | 4 |
| 356773 | RFAFNA0750 | 2 1/2 | 44 | 6 | 185 | 18 | 145 | 19 | 4 |
| 356774 | RFAFNA0900 | 3 | 51 | 7 | 200 | 18 | 160 | 22 | 8 |
| 356775 | RFAFNA1100 | 4 | 63 | 8 | 220 | 18 | 180 | 23 | 8 |
