PVCu Union Plain x Thread F
Useful Information
Technical Specification
- Manufacturer: Effast
- Material: PVCu (Polyvinyl Chloride Unplasticised)
- Size Range: 1/2" to 4"
- Connection Type: Plain x BSP Female Thread
- Pressure Rating: 15 bar at 20°C
- Operating Temperature: 5°C to +60°C
Description

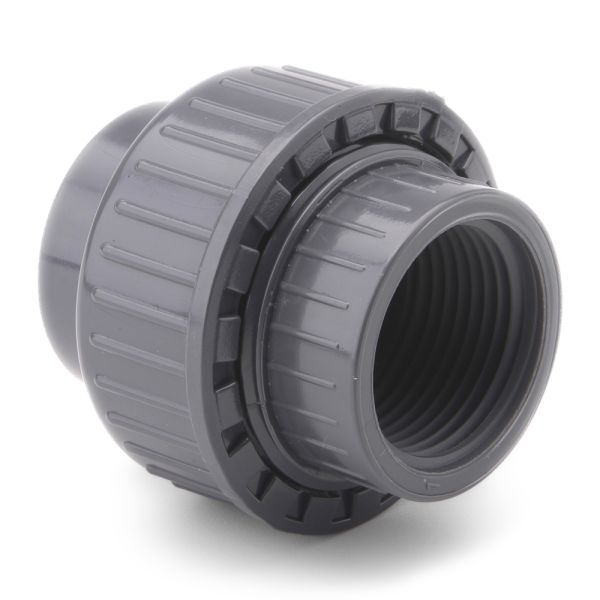

This plain x female thread union fitting is designed to connect a PVC pipe to a BSP threaded fitting while allowing easy disassembly for maintenance or adjustments. The plain end is solvent welded to the pipe, ensuring a secure and reliable connection. Manufactured from durable unplasticised PVC (PVCu), it provides excellent chemical resistance for industrial and commercial use. Please note: the threaded end may be supplied on either side.
Key Features & Benefits
- Connects a PVC pipe to a BSP threaded fitting
- Allows for easy removal and reassembly
- Plain end for solvent weld assembly
- Made from strong, chemical-resistant PVCu
- Pressure rated to 15 bar at 20°C
- IMPORTANT: Threaded end may be on either side (illustrative image only)
| SKU | Supplier Code | Nominal Size (Inch) | L1 (mm) | L2 (mm) | Z1 (mm) | Z2 (mm) | F (Inch) | E (mm) |
| 356523 | RFCBOC0200 | 1/2 | 17 | 15 | 3 | 11 | 1 | 42 |
| 356524 | RFCBOC0250 | 3/4 | 20 | 16 | 3 | 13 | 1 1/4 | 52 |
| 356525 | RFCBOC0320 | 1 | 23 | 19 | 3 | 13 | 1 1/2 | 59 |
| 356526 | RFCBOC0400 | 1 1/4 | 27 | 21 | 3 | 17 | 2 | 72 |
| 356527 | RFCBOC0500 | 1 1/2 | 32 | 21 | 3 | 24 | 2 1/4 | 79 |
| 356528 | RFCBOC0630 | 2 | 39 | 26 | 3 | 30 | 2 3/4 | 96 |
| 359788 | RFCBOC0900 | 3 | 52 | 33 | 5 | 36 | 4 | 134 |
| 359789 | RFCBOC1100 | 4 | 61 | 39 | 5 | 40 | 5 | 163 |
