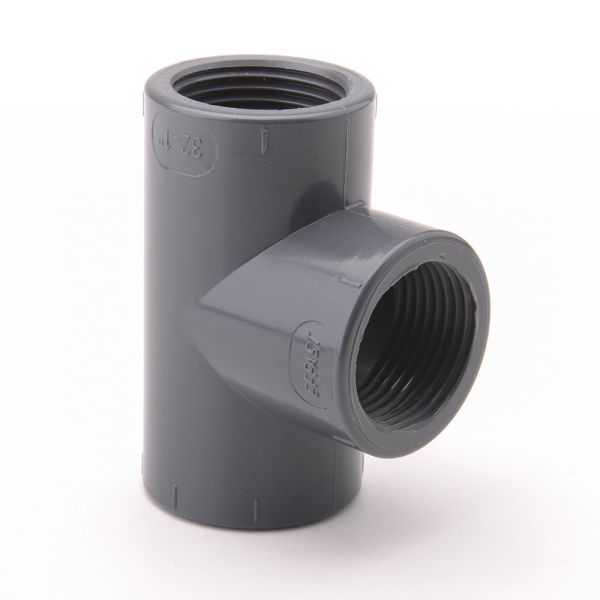

PVCu Tee 90° Threaded
Useful Information
Technical Specification
- Manufacturer: Effast
- Material: PVCu (Polyvinyl Chloride Unplasticised)
- Size Range: 3/8" to 4"
- Connection Type: BSP Female Thread
- Pressure Rating: 15 bar at 20°C
- Operating Temperature: 5°C to +60°C
Description
This threaded 90° tee fitting is designed to connect three standard male BSP threaded fittings, forming a T-shaped branch in the pipework system. Manufactured from durable unplasticised PVC (PVCu), it delivers excellent chemical resistance and high strength, ideal for industrial and commercial piping applications.
Key Features & Benefits
- Connects three male BSP threaded fittings at 90° angles
- Fully threaded for secure mechanical connections
- Made from strong, chemical-resistant PVCu
- Pressure rated to 15 bar at 20°C

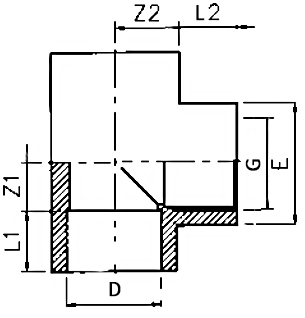

| SKU | Supplier Code | Nominal Size (Inch) | L1 - L2 (mm) | Z1 - Z2 (mm) | E (mm) |
| 359810 | RFFTIF0160 | 3/8 | 11 | 12 | 24 |
| 357175 | RFFTIF0200 | 1/2 | 15 | 12 | 28 |
| 357176 | RFFTIF0250 | 3/4 | 16 | 17 | 34 |
| 357177 | RFFTIF0320 | 1 | 19 | 20 | 42 |
| 357178 | RFFTIF0400 | 1 1/4 | 21 | 26 | 51 |
| 357179 | RFFTIF0500 | 1 1/2 | 21 | 36 | 62 |
| 357180 | RFFTIF0630 | 2 | 26 | 45 | 77 |
| 357181 | RFFTIF0750 | 2 1/2 | 30 | 53 | 89 |
| 357182 | RFFTIF0900 | 3 | 33 | 65 | 106 |
| 357183 | RFFTIF1100 | 4 | 39 | 79 | 129 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
