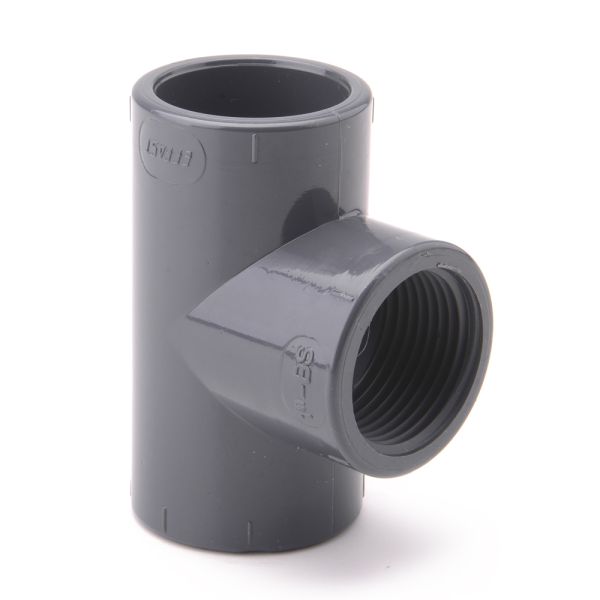

PVCu Tee 90° Plain x Thread F
Useful Information
Technical Specification
- Manufacturer: Effast
- Material: PVCu (Polyvinyl Chloride Unplasticised)
- Size Range: 1/2" to 3"
- Connection Type: Plain x BSP Female Thread (branch)
- Pressure Rating: 15 bar at 20°C
- Operating Temperature: 5°C to +60°C
Description
This plain x female thread 90° tee fitting is designed to connect two lengths of PVC pipe with a BSP male threaded fitting on the branch. The plain ends are solvent welded to the pipes for a secure joint, while the threaded branch allows easy connection to fittings or equipment. Manufactured from durable unplasticised PVC (PVCu), it is ideal for industrial and commercial pipework systems.
Key Features & Benefits
- Connects two PVC pipes and a BSP male threaded fitting
- Plain ends for solvent weld assembly
- Threaded branch for easy mechanical connection
- Made from strong, chemical-resistant PVCu
- Pressure rated to 15 bar at 20°C
| SKU | Supplier Code | Nominal Size (inch) | L1 (mm) | L2 (mm) | Z1 (mm) | Z2 (mm) | E (mm) |
| 357168 | RFCTIC0200 | 1/2 | 17 | 15 | 11 | 12 | 28 |
| 357169 | RFCTIC0250 | 3/4 | 19 | 16 | 14 | 17 | 34 |
| 357170 | RFCTIC0320 | 1 | 23 | 19 | 17 | 20 | 42 |
| 357171 | RFCTIC0400 | 1 1/4 | 27 | 21 | 21 | 26 | 51 |
| 357172 | RFCTIC0500 | 1 1/2 | 32 | 21 | 26 | 36 | 61 |
| 357173 | RFCTIC0630 | 2 | 39 | 26 | 33 | 46 | 75 |
| 359425 | RFCTIC0750 | 2 1/2 | 44 | 30 | 39 | 53 | 89 |
| 357174 | RFCTIC0900 | 3 | 52 | 33 | 47 | 65 | 106 |
