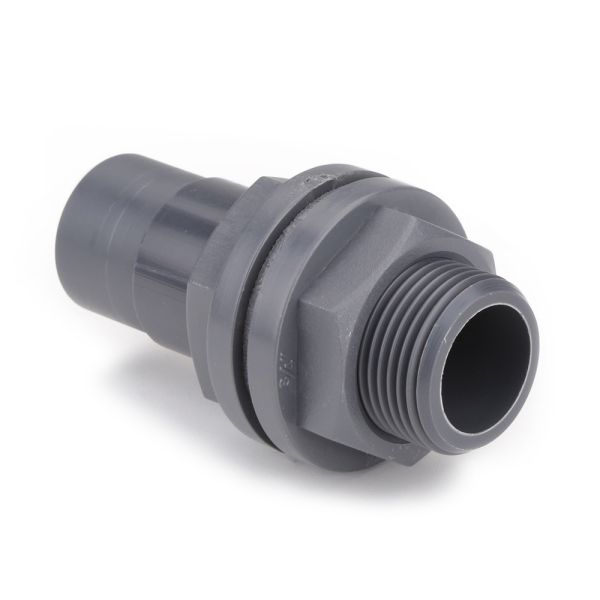

PVCu Tank Connector Plain M x Thread M
Useful Information
Technical Specification
- Manufacturer: Effast
- Material: PVCu (Polyvinyl Chloride Unplasticised)
- Size Range: 3/8" to 4"
- Connection Type: Plain Male x BSP Male Thread
- Pressure Rating: 15 bar at 20°C
- Operating Temperature: 5°C to +60°C
Description
This plain x male thread tank connector, also known as a bulkhead fitting, is designed to provide a secure connection through tank walls or panels. Supplied complete with two threaded nuts and one gasket, it offers a watertight seal for ABS and PVC systems. Made from durable unplasticised PVC (PVCu), it is ideal for industrial and commercial installations requiring reliable chemical resistance.
Key Features & Benefits
- Provides a secure connection through tank walls (bulkhead fitting)
- Plain end for solvent weld assembly
- Male BSP thread for easy mechanical connection
- Supplied with 2 x threaded nuts and 1 x gasket
- Manufactured from strong, chemical-resistant PVCu
- Pressure rated to 15 bar at 20°C
| SKU | Supplier Code | Nominal Size (inch) | L1 (mm) | L2 (mm) | O (mm) |
| 357147 | RFCTCC0160 | 3/8 | - | - | - |
| 357148 | RFCTCC0200 | 1/2 | 77 | 42 | 38 |
| 357149 | RFCTCC0250 | 3/4 | 77 | 42 | 42 |
| 357150 | RFCTCC0320 | 1 | 103 | 55 | 55 |
| 357151 | RFCTCC0400 | 1 1/4 | 121 | 70 | 65 |
| 357152 | RFCTCC0500 | 1 1/2 | 128 | 73 | 72 |
| 357153 | RFCTCC0630 | 2 | 154 | 82 | 93 |
| 357154 | RFCTCC0750 | 2 1/2 | 164 | 94 | 106 |
| 357155 | RFCTCC0900 | 3 | 202 | 110 | 125 |
| 357156 | RFCTCC1100 | 4 | 230 | 140 | 154 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
