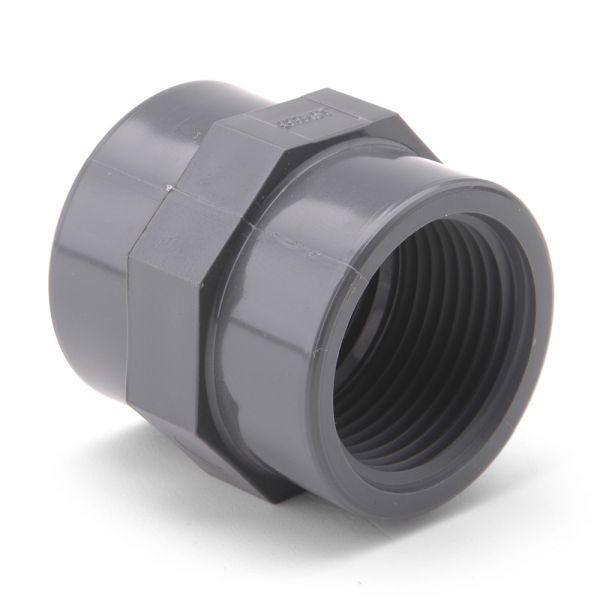

PVCu Socket Threaded
Useful Information
Technical Specification
- Manufacturer: Effast
- Material: PVCu (Polyvinyl Chloride Unplasticised)
- Size Range: 3/8" to 4"
- Connection Type: BSP Female Thread
- Pressure Rating: 15 bar at 20°C
- Operating Temperature: 5°C to +60°C
Description
This threaded socket fitting is designed to connect two standard male BSP threaded fittings, providing a strong and leak-resistant joint. Manufactured from high-quality unplasticised PVC (PVCu), it offers excellent chemical resistance and is suitable for a wide range of industrial and commercial applications.
Key Features & Benefits
- Connects two male BSP threaded fittings
- Fully threaded for secure mechanical connections
- Manufactured from strong, chemical-resistant PVCu
- Pressure rated to 15 bar at 20°C
| SKU | Supplier Code | Nominal Size (Inch) | L (mm) | Z (mm) | E (mm) |
| 359811 | RFFMAF0160 | 3/8 | 11 | 6 | 23 |
| 356891 | RFFMAF0200 | 1/2 | 15 | 7 | 27 |
| 356892 | RFFMAF0250 | 3/4 | 16 | 7 | 33 |
| 356893 | RFFMAF0320 | 1 | 19 | 8 | 41 |
| 356894 | RFFMAF0400 | 1 1/4 | 21 | 8 | 50 |
| 356895 | RFFMAF0500 | 1 1/2 | 21 | 8 | 61 |
| 356896 | RFFMAF0630 | 2 | 26 | 8 | 75 |
| 356897 | RFFMAF0750 | 2 1/2 | 30 | 9 | 88 |
| 356898 | RFFMAF0900 | 3 | 33 | 10 | 106 |
| 356899 | RFFMAF1100 | 4 | 39 | 11 | 129 |
