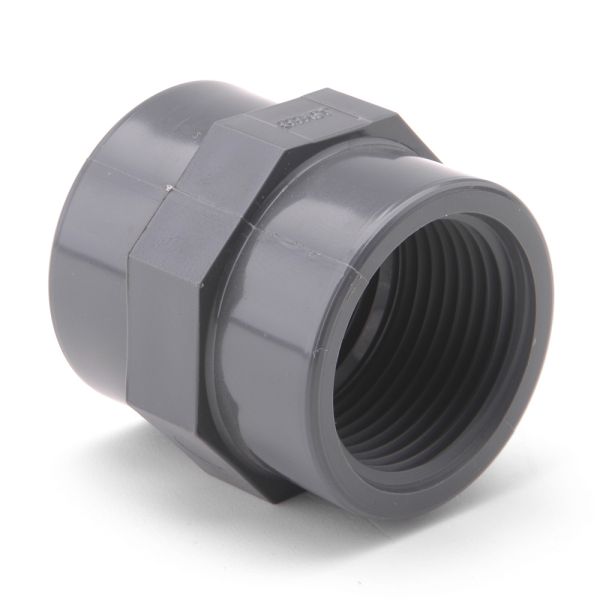

PVCu Socket Plain x Thread F
Useful Information
Technical Specification
- Manufacturer: Effast
- Material: PVCu (Polyvinyl Chloride Unplasticised)
- Size Range: 1/2" to 4"
- Connection Type: Plain x BSP Female Thread
- Pressure Rating: 15 bar at 20°C
- Operating Temperature: 5°C to +60°C
Description
This plain x female thread socket fitting is used to join a length of PVC pipe to a fitting with a BSP male thread. The plain end is solvent welded to the pipe, providing a secure and durable connection. Manufactured from strong unplasticised PVC (PVCu), it offers excellent chemical resistance for a wide range of industrial and commercial applications.
Key Features & Benefits
- Connects PVC pipe to a BSP male threaded fitting
- Plain end for solvent weld assembly
- Manufactured from strong, chemical-resistant PVCu
- Pressure rated to 15 bar at 20°C

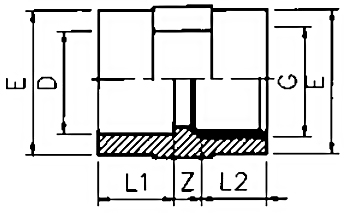

| SKU | Supplier Code | Nominal Size (inch) | L1 (mm) | L2 (mm) | Z (mm) | E |
| 356883 | RFCMAC0200 | 1/2 | 17 | 15 | 4 | 28 |
| 356884 | RFCMAC0250 | 3/4 | 20 | 16 | 6 | 34 |
| 356885 | RFCMAC0320 | 1 | 23 | 19 | 7 | 42 |
| 356886 | RFCMAC0400 | 1 1/4 | 27 | 21 | 7 | 51 |
| 356887 | RFCMAC0500 | 1 1/2 | 32 | 21 | 7 | 61 |
| 356888 | RFCMAC0630 | 2 | 39 | 26 | 7 | 75 |
| 359420 | RFCMAC0750 | 2 1/2 | 44 | 30 | 8 | 89 |
| 356889 | RFCMAC0900 | 3 | 52 | 33 | 9 | 106 |
| 356890 | RFCMAC1100 | 4 | 63 | 39 | 10 | 133 |
