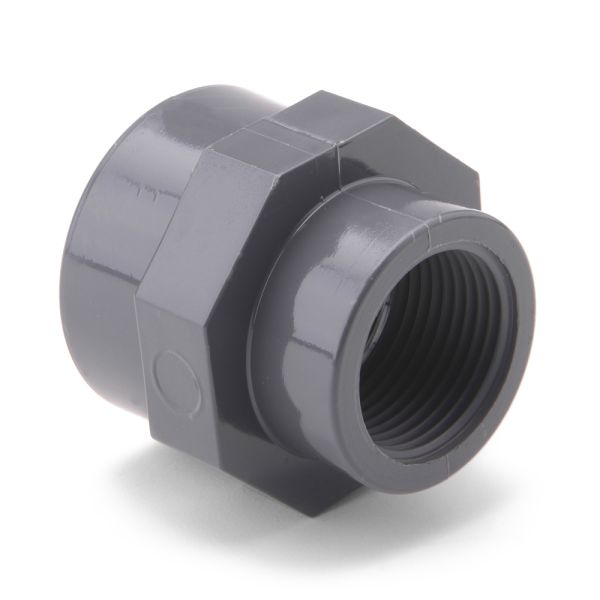

PVCu Reducing Socket Threaded
Useful Information
Technical Specification
- Manufacturer: Effast
- Material: PVCu (Polyvinyl Chloride Unplasticised)
- Size Range: 1/2" x 3/8" to 4" x 3"
- Connection Type: BSP Female Thread (Reducing)
- Pressure Rating: 15 bar at 20°C
- Operating Temperature: 5°C to +60°C
Description
This threaded reducing socket fitting is designed to connect two standard male BSP threaded fittings of different diameters. Made from durable unplasticised PVC (PVCu), it ensures a strong, chemical-resistant connection ideal for industrial and commercial pipework systems.
Key Features & Benefits
- Connects two male BSP threaded fittings of different sizes
- Fully threaded for secure mechanical connections
- Manufactured from tough, chemical-resistant PVCu
- Pressure rated to 15 bar at 20°C

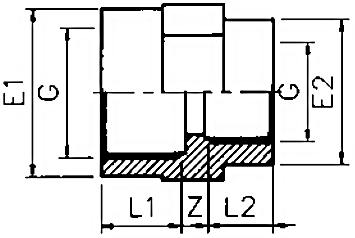

| SKU | Supplier Code | Nominal Size (Inch) | L1 (mm) | L2 (mm) | Z (mm) | E1 (mm) | E2 (mm) |
| 359829 | RFFMRF020A | 1/2 x 3/8 | 15 | 11 | 6 | 28 | 23 |
| 356932 | RFFMRF025B | 3/4 x 1/2 | 16 | 15 | 7 | 34 | 27 |
| 356933 | RFFMRF032C | 1 x 3/4 | 19 | 16 | 7 | 42 | 33 |
| 356934 | RFFMRF040D | 1 1/4 x 1 | 21 | 19 | 8 | 51 | 41 |
| 356935 | RFFMRF050E | 1 1/2 x 1 1/4 | 21 | 21 | 8 | 58 | 50 |
| 356936 | RFFMRF063F | 2 x 1 1/2 | 26 | 21 | 8 | 72 | 61 |
| 359830 | RFFMRF075G | 2 1/2 x 2 | 30 | 26 | 8 | 89 | 75 |
| 359831 | RFFMRF090H | 3 x 2 1/2 | 33 | 30 | 9 | 103 | 88 |
| 359832 | RFFMRF110I | 4 x 3 | 39 | 33 | 10 | 130 | 106 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
