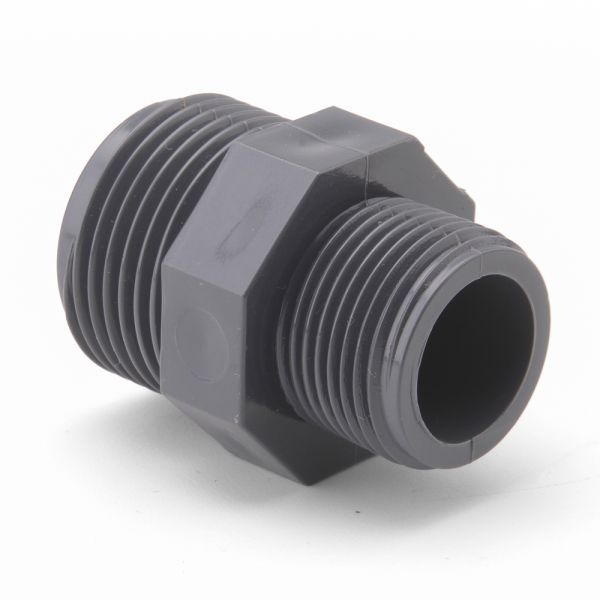

PVCu Reducing Nipple Threaded
Useful Information
Technical Specification
- Manufacturer: Effast
- Material: PVCu (Polyvinyl Chloride Unplasticised)
- Thread Type: BSP male
- Pressure Rating: 15 bar at 20°C
- Operating Temperature: 5°C to +60°C
- Size Range: 1/2" x 3/8" to 4" x 3"
Description
Engineered for joining BSP female-threaded fittings of different sizes, this reducing nipple is a practical solution for pipework requiring a diameter change. Manufactured from robust PVCu, it provides excellent resistance to corrosion and a wide range of chemicals, ensuring long-term performance in demanding applications.
Key Features & Benefits
- Enables connection between two BSP female threads of different sizes
- Compact and lightweight design
- Durable construction using corrosion-resistant PVCu
- Pressure rated to 15 bar at 20°C
- Suitable for operating temperatures from 5°C to +60°C

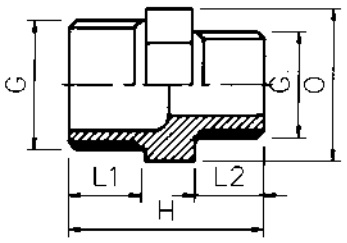

| SKU | Supplier Code | Nominal Size (Inch) | L1 (mm) | L2 (mm) | Z (mm) | E (mm) |
| 359837 | RFFNRF020A | 1/2 x 3/8 | 15 | 11 | 38 | 24 |
| 356946 | RFFNRF025B | 3/4 x 1/2 | 16 | 15 | 43 | 30 |
| 356947 | RFFNRF032C | 1 x 3/4 | 19 | 16 | 47 | 36 |
| 356948 | RFFNRF040D | 1 1/4 x 1 | 21 | 19 | 56 | 46 |
| 356949 | RFFNRF050E | 1 1/2 x 1 1/4 | 21 | 21 | 58 | 50 |
| 356950 | RFFNRF063F | 2 x 1 1/2 | 26 | 21 | 62 | 65 |
| 359838 | RFFNRF075G | 2 1/2 x 2 | 30 | 26 | 73 | 80 |
| 359839 | RFFNRF090H | 3 x 2 1/2 | 33 | 30 | 82 | 95 |
| 359840 | RFFNRF110I | 4 x 3 | 39 | 33 | 90 | 120 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
