PVCu Reducing Bush Plain x Thread F
Useful Information
Technical Specification
- Manufacturer: Effast
- Material: PVCu (Polyvinyl Chloride Unplasticised)
- Size Range: 3/8" x 1/4" to 1" x 3/4"
- Connection Type: Plain x BSP Female Thread
- Pressure Rating: 15 bar at 20°C
- Operating Temperature: 5°C to +60°C
Description

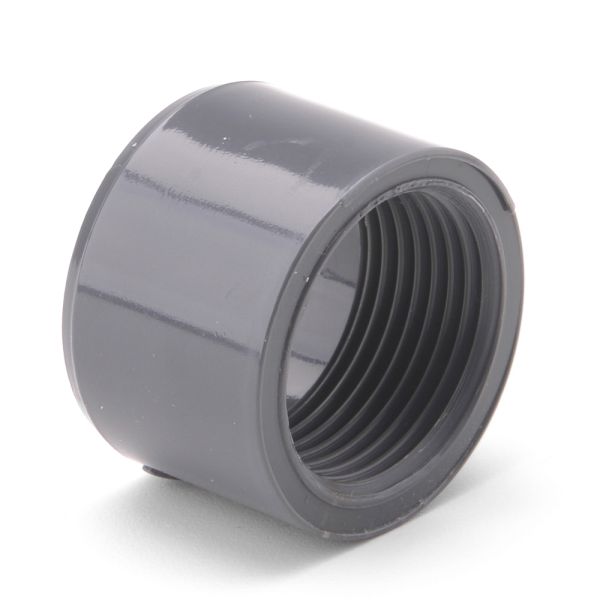

This plain x female thread reducing bush is designed to reduce the diameter within a fitting and provide a BSP male threaded connection. The plain end is solvent welded into another PVC fitting, offering a secure and durable solution for adapting pipework systems. Manufactured from high-quality unplasticised PVC (PVCu), it ensures excellent chemical resistance for industrial and commercial applications.
Key Features & Benefits
- Reduces fitting size and connects to a BSP male thread
- Plain end for solvent weld assembly
- Threaded side for mechanical connections
- Made from durable, chemical-resistant PVCu
- Pressure rated to 15 bar at 20°C

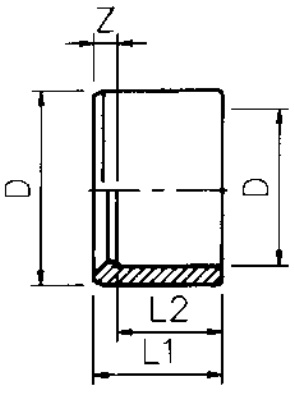

| SKU | Supplier Code | Nominal Size (inch) | L1 (mm) | L2 (mm) |
| 357044 | RFCRCC020A | 1/2 x 3/8 | 19 | 16 |
| 357045 | - | 1/2 x 1/4 | - | - |
| 357046 | - | 3/4 x 3/8 | - | - |
| 357048 | RFCRCC025B | 3/4 x 1/2 | 22 | 19 |
| 357049 | - | 1 x 3/8 | - | - |
| 357051 | - | 1 x 1/2 | - | - |
| 357052 | RFCRCC032C | 1 x 3/4 | 25 | 22 |
RFCRCC032C
