PVCu Reducing Bush Plain

Loading...
main product photo
More Info
Useful Information

Technical Specification

  • Manufacturer: Effast
  • Material: PVCu (Polyvinyl Chloride Unplasticised)
  • Size Range: 1/2" x 3/8" to 8" x 6"
  • Pressure Rating: 15 bar at 20°C
  • Operating Temperature: 5°C to +60°C

Description

This plain reducing bush fitting is used to reduce the diameter of one side of a PVC fitting, providing a simple solution for connecting different pipe sizes. Designed to be solvent welded inside a socket, it is made from strong, chemical-resistant unplasticised PVC (PVCu) and is suitable for a wide range of industrial and commercial applications.

Key Features & Benefits

  • Reduces the diameter within a PVC fitting
  • Fits securely using a solvent weld assembly
  • Manufactured from durable, chemical-resistant PVCu
  • Pressure rated to 15 bar at 20°C

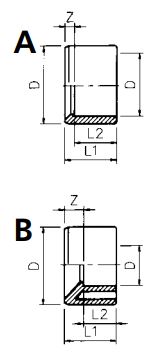

PVC Reducing Bush Plain Diagram

SKU Supplier Code Nominal Size (inch) L1 (mm) L2 (mm) Z (mm) Fig
357022 RFARCA020A 1/2 x 3/8 17 15 2 A
357023 RFARCA025B 3/4 x 1/2 20 17 3 A
357024 RFARCA032B 1 x 1/2 23 17 6 B
357025 RFARCA032C 1 x 3/4 23 20 3 A
357026 RFARCA040D 1 1/4 x 1 27 23 4 A
357027 RFARCA050C 1 1/2 x 3/4 31 20 12 B
357028 RFARCA050D 1 1/2 x 1 31 23 9 B
357029 RFARCA050E 1 1/2 x 1 1/4 31 27 5 A
357030 RFARCA063D 2 x 1 38 23 16 B
357031 RFARCA063E 2 x 1 1/4 38 27 12 B
357032 RFARCA063F 2 x 1 1/2 38 31 7 A
357033 RFARCA075F 2 1/2 x 1 1/2 44 31 13 B
357034 RFARCA075G 2 1/2 x 2 44 38 6 A
357035 RFARCA090F 3 x 1 1/2 52 31 20 B
357036 RFARCA090G 3 x 2 52 38 13 B
357037 RFARCA090H 3 x 2 1/2 52 44 13 B
357038 RFARCA110G 4 x 2 63 39 24 B
357039 RFARCA110I 4 x 3 63 52 110 A
357040 RFARCA140L 5 x 4 76 63 15 B
357041 RFARCA160L 6 x 4 90 63 25 B
357042 RFARCA225M 8 x 6 119 90 33 B



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



More Info
Grouped product items
Code Product Name List Price You Save You Pay Quantity
357022 PVCu Reducing Bush Plain 1/2" x 3/8" £2.69 78%
You Pay:  £0.59
357023 PVCu Reducing Bush Plain 3/4" x 1/2" £3.46 78%
You Pay:  £0.76
357024 PVCu Reducing Bush Plain 1" x 1/2" £4.47 78%
You Pay:  £0.98
357025 PVCu Reducing Bush Plain 1" x 3/4" £4.47 78%
You Pay:  £0.98
357026 PVCu Reducing Bush Plain 1 1/4" x 1" £5.93 78%
You Pay:  £1.30
357027 PVCu Reducing Bush Plain 1 1/2" x 3/4" £7.19 78%
You Pay:  £1.58
357028 PVCu Reducing Bush Plain 1 1/2" x 1" £7.19 78%
You Pay:  £1.58
357029 PVCu Reducing Bush Plain 1 1/2" x 1 1/4" £7.19 78%
You Pay:  £1.58
357032 PVCu Reducing Bush Plain 2" x 1 1/2" £9.87 78%
You Pay:  £2.17
357031 PVCu Reducing Bush Plain 2" x 1 1/4" £9.87 78%
You Pay:  £2.17
357030 PVCu Reducing Bush Plain 2" x 1" £9.87 78%
You Pay:  £2.17
357033 PVCu Reducing Bush Plain 2 1/2" x 1 1/2" £17.62 78%
You Pay:  £3.88
357034 PVCu Reducing Bush Plain 2 1/2" x 2" £17.62 78%
You Pay:  £3.88
357035 PVCu Reducing Bush Plain 3" x 1 1/2" £28.25 78%
You Pay:  £6.22
357036 PVCu Reducing Bush Plain 3" x 2" £28.25 78%
You Pay:  £6.22
357037 PVCu Reducing Bush Plain 3" x 2 1/2" £28.25 78%
You Pay:  £6.22
357038 PVCu Reducing Bush Plain 4" x 2" £38.81 78%
You Pay:  £8.54
357039 PVCu Reducing Bush Plain 4" x 3" £38.81 78%
You Pay:  £8.54
357040 PVCu Reducing Bush Plain 5" x 4" £111.86 78%
You Pay:  £24.61
357041 PVCu Reducing Bush Plain 6" x 4" £120.25 78%
You Pay:  £26.46
357042 PVCu Reducing Bush Plain 8" x 6" £370.17 78%
You Pay:  £81.44
