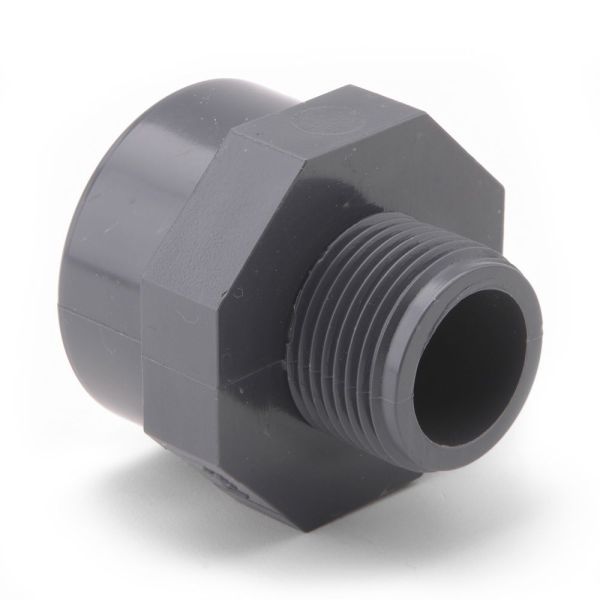

PVCu Reducing Adaptor Threaded F x M
Useful Information
Technical Specification
- Manufacturer: Effast
- Material: PVCu (Polyvinyl Chloride Unplasticised)
- Thread Type: BSP Female x Male
- Pressure Rating: 15 bar at 20°C
- Operating Temperature: 5°C to +60°C
- Size Range: 1/2" x 3/8" to 4" x 3"
Description
Perfect for transitioning between a smaller BSP male thread and a larger BSP female thread, this reducing adaptor is ideal for systems requiring threaded connection adjustments. Made from durable unplasticised PVC, it ensures reliable performance with strong resistance to corrosion and a wide range of chemicals.
Key Features & Benefits
- Connects a BSP male to a larger BSP female thread
- Precision-moulded for leak-resistant connections
- Made from chemical-resistant and durable PVCu
- Pressure rated to 15 bar at 20°C
| SKU | Supplier Code | Nominal Size (Inch) | L1 (mm) | L2 (mm) | Z (mm) | O (mm) | E (mm) |
| 359833 | RFFMGF020A | 1/2 x 3/8 | 11 | 15 | 22 | 30 | 28 |
| 356927 | RFFMGF025B | 3/4 x 1/2 | 15 | 16 | 24 | 36 | 34 |
| 356928 | RFFMGF032C | 1 x 3/4 | 16 | 19 | 26 | 46 | 42 |
| 356929 | RFFMGF040D | 1 1/4 x 1 | 19 | 21 | 30 | 55 | 51 |
| 356930 | RFFMGF050E | 1 1/2 x 1 1/4 | 21 | 21 | 33 | 60 | 58 |
| 356931 | RFFMGF063F | 2 x 1 1/2 | 21 | 26 | 34 | 75 | 72 |
| 359834 | RFFMGF075G | 2 1/2 x 2 | 26 | 30 | 38 | 90 | 89 |
| 359835 | RFFMGF090H | 3 x 2 1/2 | 30 | 33 | 44 | 105 | 103 |
| 359836 | RFFMGF110I | 4 x 3 | 33 | 39 | 48 | 130 | 130 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
