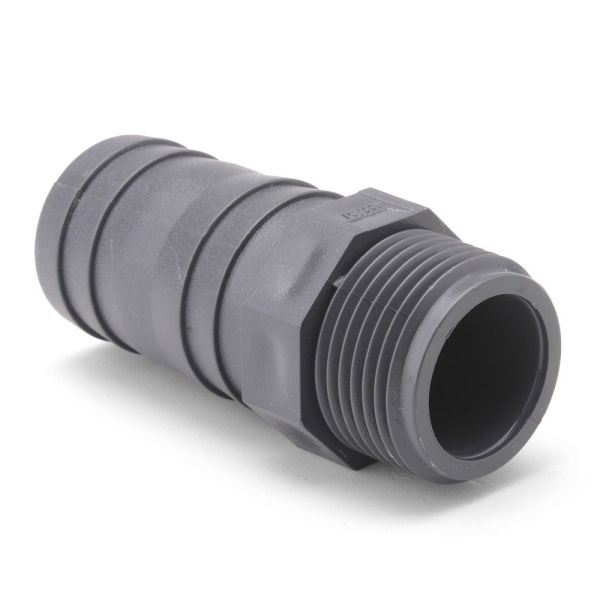

PVCu Hose Adaptor
Useful Information
Technical Specification
- Manufacturer: Effast
- Material: PVCu (Polyvinyl Chloride Unplasticised)
- Connection Type: BSP Male x Hose Tail
- Pressure Rating: 15 bar at 20°C
- Operating Temperature: 5°C to +60°C
- Size Range: 3/8" x 16mm to 2" x 63mm
Description
Designed for connecting flexible hose to BSP female-threaded pipework, this hose adaptor provides a dependable transition between rigid and flexible systems. Manufactured from high-quality PVCu, it ensures excellent durability, chemical resistance, and long-lasting performance in a variety of fluid handling applications.
Key Features & Benefits
- Connects hose to BSP female-threaded fittings
- Barbed hose tail ensures a secure, leak-free grip
- Made from strong, corrosion-resistant PVCu
- Pressure rated up to 15 bar at 20°C

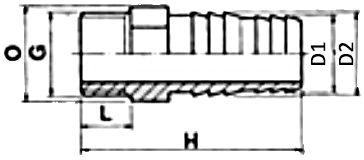

| SKU | Supplier Code | Nominal Size (Inch x mm) | L (mm) | H (mm) | D1 (mm) | D2 (mm) | O (mm) |
| 356963 | RFFPGF016A | 3/8 x 16mm | 12 | 64 | 16 | 18 | 19 |
| 356964 | RFFPGF020B | 1/2 x 20mm | 15 | 70 | 20 | 22 | 24 |
| 356965 | RFFPGF025C | 3/4 x 25mm | 17 | 76 | 25 | 27 | 30 |
| 356966 | RFFPGF032D | 1 x 32mm | 20 | 80 | 32 | 34 | 36 |
| 356967 | RFFPGF040E | 1 1/4 x 40mm | 22 | 92 | 40 | 42 | 46 |
| 356968 | RFFPGF050F | 1 1/2 x 50mm | 23 | 99 | 50 | 52 | 50 |
| 356969 | RFFPGF063G | 2 x 63mm | 26 | 118 | 60 | 63 | 65 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
