PVCu Elbow 90° Plain x Thread F
Useful Information

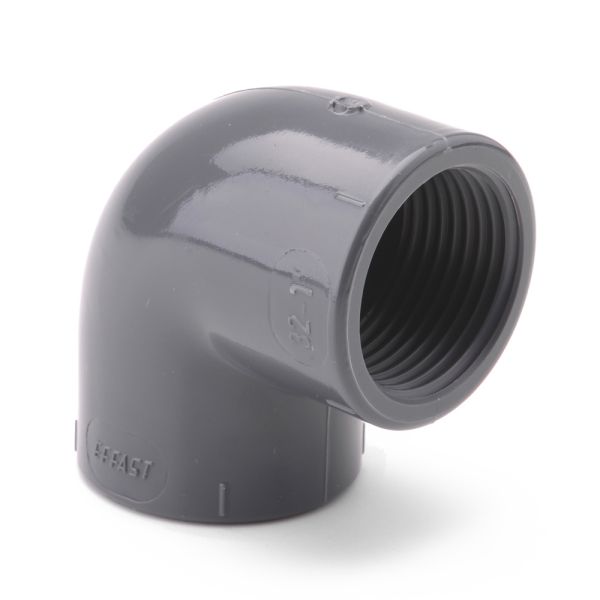

Effast plain x thread PVC elbow 90° fittings are available in sizes 1/2" to 3".
This fitting is used to connect between a length of PVC pipe and a BSP male thread, at an angle of 90°.
The plain end should be bonded to the pipe using PVC solvent cement.
| Manufacturer | Effast |
| Material | PVCu - polyvinyl chloride unplasticised |
| Pressure Rating | 15 bar at 20°C |
| Operating Temperature | 5°C to +60°C |
| Product Code | Nominal Size (inch) | L1 (mm) | L2 (mm) | Z1 (mm) | Z2 (mm) | E (mm) |
| 356803 | 1/2 | 17 | 15 | 11 | 12 | 28 |
| 356804 | 3/4 | 20 | 16 | 14 | 17 | 34 |
| 356805 | 1 | 23 | 19 | 17 | 20 | 42 |
| 356806 | 1 1/4 | 27 | 21 | 21 | 26 | 51 |
| 356807 | 1 1/2 | 32 | 21 | 26 | 36 | 61 |
| 356808 | 2 | 39 | 26 | 33 | 46 | 75 |
| 356809 | 3 | 51 | 33 | 47 | 65 | 106 |
