PVCu Elbow 90° Plain

Loading...

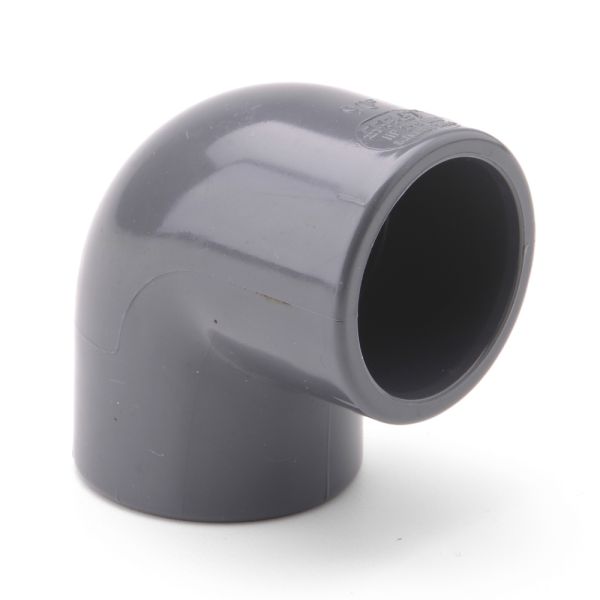

main product photo
More Info
Useful Information

Technical Specification

  • Manufacturer: Effast
  • Material: PVCu (Polyvinyl Chloride Unplasticised)
  • Size Range: 1/2" to 8"
  • Pressure Rating: 15 bar at 20°C
  • Operating Temperature: 5°C to +60°C

Description

This plain 90° elbow fitting is designed to join two PVC pipes of the same diameter at a right angle, enabling directional changes within pipework systems. Made from robust unplasticised PVC (PVCu), it offers excellent strength and chemical resistance, making it suitable for a wide range of industrial and commercial applications.

Key Features & Benefits

  • Connects two PVC pipes at a 90° angle
  • Manufactured from durable, chemical-resistant PVCu
  • Suitable for solvent weld assembly
  • Pressure rated to 15 bar at 20°C



PVC Elbow 90 Plain Diagram

SKU Supplier Code Nominal Size (inch) L (mm) Z (mm) E (mm)
356793 RFAGOA0200 1/2 17 11 27
356794 RFAGOA0250 3/4 20 14 33
356795 RFAGOA0320 1 23 17 41
356796 RFAGOA0400 1 1/4 27 23 51
356797 RFAGOA0500 1 1/2 31 28 61
356798 RFAGOA0630 2 38 34 75
359414 RFAGOA0750 2 1/2 44 40 89
356799 RFAGOA0900 3 52 48 106
356800 RFAGOA1100 4 63 58 133
359415 RFAGOA1400 5 76 72 164
356801 RFAGOA1600 6 90 81 198
356802 RFAGOA2250 8 119 115 258



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



More Info
Grouped product items
Code Product Name List Price You Save You Pay Quantity
356793 PVCu Elbow 90 Plain 1/2" £4.61 78%
You Pay:  £1.01
356794 PVCu Elbow 90 Plain 3/4" £5.32 78%
You Pay:  £1.17
356795 PVCu Elbow 90 Plain 1" £7.50 78%
You Pay:  £1.65
356796 PVCu Elbow 90 Plain 1 1/4" £13.10 78%
You Pay:  £2.88
356797 PVCu Elbow 90 Plain 1 1/2" £16.89 78%
You Pay:  £3.72
356798 PVCu Elbow 90 Plain 2" £25.15 78%
You Pay:  £5.53
359414 PVCu Elbow 90 Plain 2 1/2" £47.20 74%
You Pay:  £12.27
356799 PVCu Elbow 90 Plain 3" £72.45 78%
You Pay:  £15.94
356800 PVCu Elbow 90 Plain 4" £108.88 78%
You Pay:  £23.95
359415 PVCu Elbow 90 Plain 5" £249.35 74%
You Pay:  £64.83
356801 PVCu Elbow 90 Plain 6" £430.32 78%
You Pay:  £94.67
356802 PVCu Elbow 90 Plain 8" £1,020.12 78%
You Pay:  £224.43
