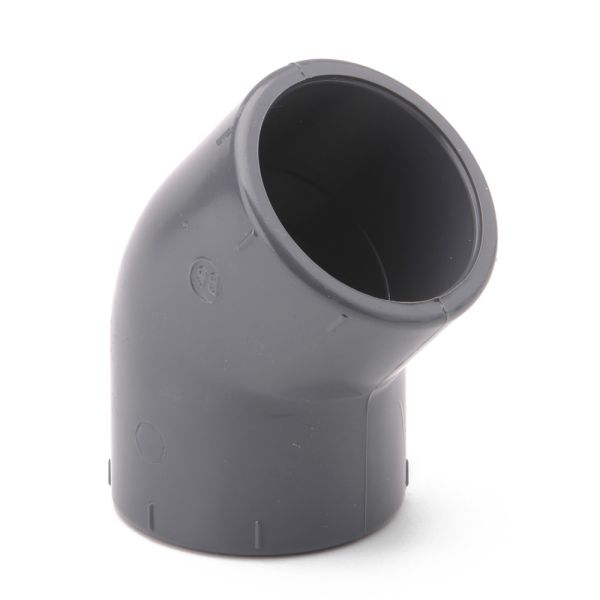

PVCu Elbow 45° Plain

Skip to the beginning of the images gallery

Useful Information

Effast plain PVC elbow 45° fittings are available in sizes 1/2" to 8".

This fitting is used to join two lengths of PVC pipe, of the same diameters, at an angle of 45°.

Manufacturer	Effast
Material	PVCu - polyvinyl chloride unplasticised
Pressure Rating	15 bar at 20°C
Operating Temperature	5°C to +60°C

PVC Elbow 45 Plain Diagram

Product Code	Nominal Size (inch)	L (mm)	Z (mm)	E (mm)
356846	1/2	17	5	27
356847	3/4	20	6	33
356848	1	23	8	41
356849	1 1/4	27	10	50
356850	1 1/2	32	12	61
356851	2	38	15	75
359416	2 1/2	44	18	89
356852	3	52	21	106
356853	4	63	25	133
359417	5	76	32	164
356854	6	90	36	198
356855	8	119	49	258

IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

All text and product images are the intellectual property and copyright of Pipestock Limited

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
356846	PVCu Elbow 45 Plain 1/2"	£8.44	78%	£1.86
356847	PVCu Elbow 45 Plain 3/4"	£8.79	78%	£1.93
356848	PVCu Elbow 45 Plain 1"	£10.78	78%	£2.37
356849	PVCu Elbow 45 Plain 1 1/4"	£15.33	78%	£3.37
356850	PVCu Elbow 45 Plain 1 1/2"	£19.38	78%	£4.26
356851	PVCu Elbow 45 Plain 2"	£27.19	78%	£5.98
359416	PVCu Elbow 45 Plain 2 1/2"	£42.72	74%	£11.11
356852	PVCu Elbow 45 Plain 3"	£64.16	78%	£14.11
356853	PVCu Elbow 45 Plain 4"	£131.66	78%	£28.97
359417	PVCu Elbow 45 Plain 5"	£224.48	74%	£58.36
356854	PVCu Elbow 45 Plain 6"	£273.82	78%	£60.24
356855	PVCu Elbow 45 Plain 8"	£907.59	78%	£199.67
