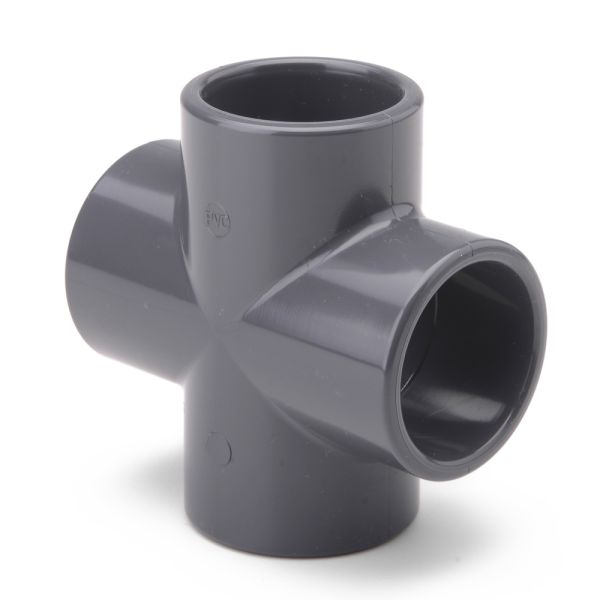

PVCu Cross 90° Plain
Useful Information
Technical Specification
- Manufacturer: Effast
- Material: PVCu (Polyvinyl Chloride Unplasticised)
- Size Range: 1/2" to 2"
- Pressure Rating: 15 bar at 20°C
- Operating Temperature: 5°C to +60°C
Description
This plain 90° cross fitting is used to join four PVC pipes of the same diameter, forming a four-way intersection at right angles within the pipework system. Made from durable unplasticised PVC (PVCu), it provides excellent chemical resistance and strength for a variety of industrial and commercial applications.
Key Features & Benefits
- Connects four PVC pipes of the same diameter at 90°
- Strong, chemical-resistant PVCu construction
- Suitable for solvent weld assembly
- Pressure rated to 15 bar at 20°C
- Operating temperature range from 5°C to +60°C
| SKU | Supplier Code | Nominal Size (inch) | L (mm) | Z (mm) | E (mm) |
| 356714 | RFACXA0200 | 1/2 | - | - | - |
| 356716 | RFACXA0320 | 1 | 23 | 17 | 42 |
| 356718 | RFACXA0500 | 1 1/2 | 31 | 26 | 61 |
| 356719 | RFACXA0630 | 2 | 38 | 33 | 75 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
