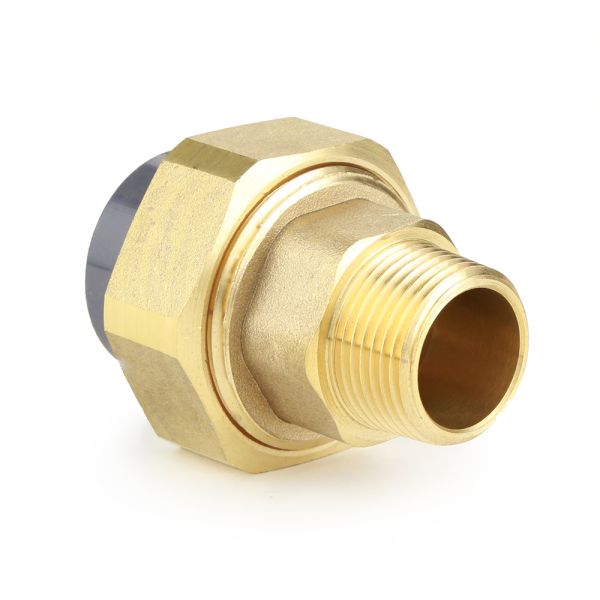

PVCu Composite Union Plain F x Thread M Brass
Useful Information
Technical Specification
- Manufacturer: Effast
- Material: PVCu (Polyvinyl Chloride Unplasticised) and Brass
- Size Range: 1/2" to 3"
- Connection Type: Plain Female x BSP Male Brass Thread
- Pressure Rating: 15 bar at 20°C
- Operating Temperature: 5°C to +60°C
Description
This composite union fitting features a durable PVCu body with a brass BSP male thread, providing a strong and secure mechanical connection while allowing for easy disassembly. The plain end is solvent welded to a PVC pipe for a reliable bond. It combines chemical resistance with the additional strength of brass, making it ideal for industrial and commercial applications.
Key Features & Benefits
- Connects a PVC pipe to a BSP male brass threaded fitting
- Plain end for solvent weld assembly
- Composite construction: PVCu body with brass threaded insert
- Allows for easy removal and maintenance
- Pressure rated to 15 bar at 20°C
| SKU | Supplier Code | Nominal Size (inch) | E (mm) | L1 (mm) | Z1 (mm) |
| 356488 | RFCBMC0200 | 1/2 | 28 | 58 | 3 |
| 356489 | RFCBMC0250 | 3/4 | 36 | 69 | 3 |
| 356490 | RFCBMC0320 | 1 | 42 | 72 | 3 |
| 356491 | RFCBMC0400 | 1 1/4 | 53 | 86 | 3 |
| 356492 | RFCBMC0500 | 1 1/2 | 59 | 92 | 3 |
| 356493 | RFCBMC0630 | 2 | 74 | 109 | 3 |
| 356494 | RFCBMC0750 | 2 1/2 | 93 | 127 | 3 |
| 356495 | RFCBMC0900 | 3 | 105 | 139 | 5 |
