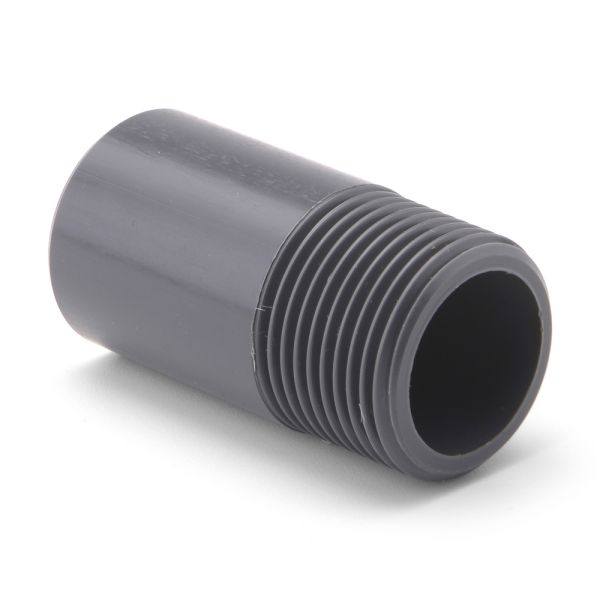

PVCu Barrel Nipple Plain M x Thread M
Useful Information
Technical Specification
- Manufacturer: Effast
- Material: PVCu (Polyvinyl Chloride Unplasticised)
- Size Range: 1/4" to 4"
- Connection Type: Plain x BSP Male Thread
- Pressure Rating: 15 bar at 20°C
- Operating Temperature: 5°C to +60°C
Description
This plain x male thread barrel nipple fitting is designed to provide a BSP male threaded connection by solvent welding into a length of PVC pipe. Manufactured from durable unplasticised PVC (PVCu), it offers excellent chemical resistance and reliable performance for a wide range of industrial and commercial applications.
Key Features & Benefits
- Provides a BSP male threaded connection from a PVC pipe
- Plain end for solvent weld assembly
- Threaded end for mechanical connections
- Made from strong, chemical-resistant PVCu
- Pressure rated to 15 bar at 20°C
| SKU | Supplier Code | Nominal Size (inch) | L1 (mm) | L2 (mm) |
| 356496 | - | 1/4 | - | - |
| 356497 | RFCBNC0160 | 3/8 | 42 | 13 |
| 356498 | RFCBNC0200 | 1/2 | 50 | 16 |
| 356499 | RFCBNC0250 | 3/4 | 56 | 17 |
| 356500 | RFCBNC0320 | 1 | 63 | 20 |
| 356501 | RFCBNC0400 | 1 1/4 | 75 | 24 |
| 356502 | RFCBNC0500 | 1 1/2 | 88 | 30 |
| 356503 | RFCBNC0630 | 2 | 88 | 32 |
| 356504 | RFCBNC0750 | 2 1/2 | 106 | 35 |
| 356505 | RFCBNC0900 | 3 | 128 | 39 |
| 356506 | RFCBNC1100 | 4 | 153 | 43 |
