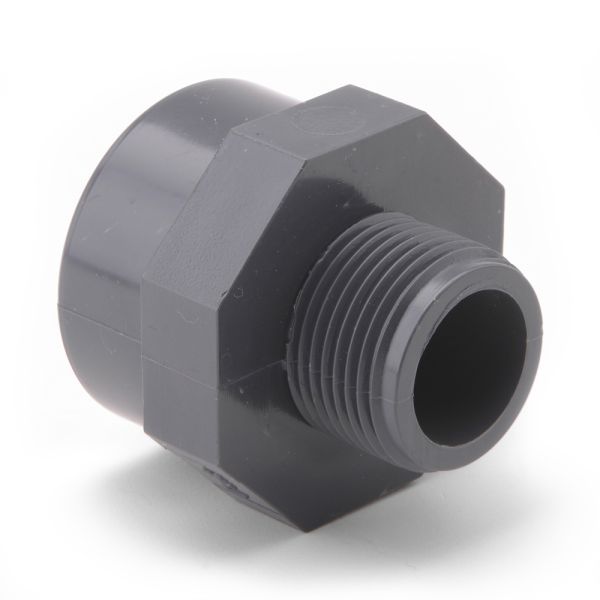

PVCu Adaptor Plain F x Thread M
Useful Information
Technical Specification
- Manufacturer: Effast
- Material: PVCu (Polyvinyl Chloride Unplasticised)
- Size Range: 1/2" to 4"
- Connection Type: Plain Female x BSP Male Thread
- Pressure Rating: 15 bar at 20°C
- Operating Temperature: 5°C to +60°C
Description
This plain female x male thread adaptor fitting is designed to add a BSP male threaded connection to a PVC pipe. The plain end is solvent welded into the pipe, offering a strong, durable solution. Manufactured from high-quality unplasticised PVC (PVCu), it delivers excellent chemical resistance for a range of industrial and commercial applications.
Key Features & Benefits
- Adds a BSP male thread to a PVC pipe
- Plain end for solvent weld assembly
- Made from strong, chemical-resistant PVCu
- Pressure rated to 15 bar at 20°C

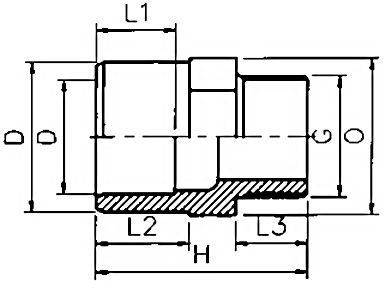

| SKU | Supplier Code | Nominal Size (inch) | L1 (mm) | L2 (mm) | L3 (mm) | H (mm) | O (mm) |
| 356431 | RFCAMC0200 | 1/2 | 17 | 20 | 15 | 46 | 30 |
| 356432 | RFCAMC0250 | 3/4 | 20 | 23 | 16 | 50 | 36 |
| 356433 | RFCAMC0320 | 1 | 23 | 27 | 19 | 57 | 46 |
| 356434 | RFCAMC0400 | 1 1/4 | 27 | 32 | 21 | 67 | 55 |
| 356435 | RFCAMC0500 | 1 1/2 | 32 | 39 | 21 | 74 | 65 |
| 356436 | RFCAMC0630 | 2 | 39 | 44 | 26 | 84 | 80 |
| 359769 | RFCAMC0750 | 2 1/2 | 44 | 52 | 30 | 99 | 95 |
| 356437 | RFCAMC0900 | 3 | 52 | 63 | 33 | 113 | 115 |
| 356438 | RFCAMC1100 | 4 | 63 | 66 | 39 | 120 | 130 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
