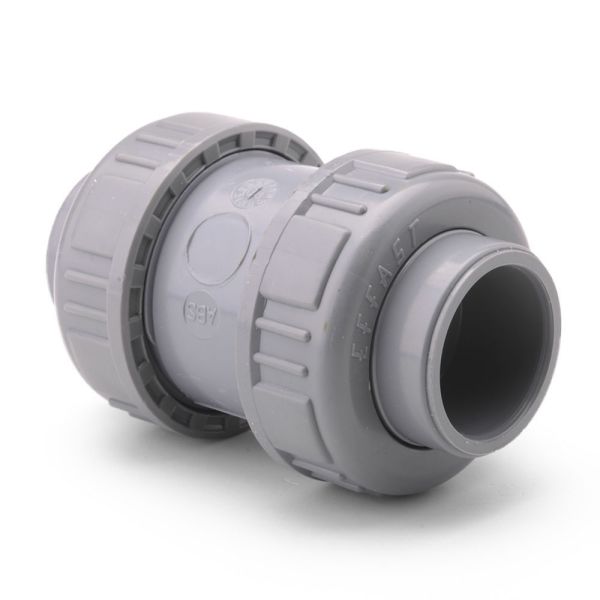

Air Release Valve

Useful Information

Effast ABS air release valves are available in sizes 1/2" to 2".

This valve is designed to remove any air which has entered the pipeline.

Manufacturer Effast
Material ABS - acrylonitrile butadiene styrene (valve), EPDM - ethylene propylene diene monomer rubber (seal)
Pressure Rating 16 bar at 20°C
Operating Temperature -40°C to +60°C

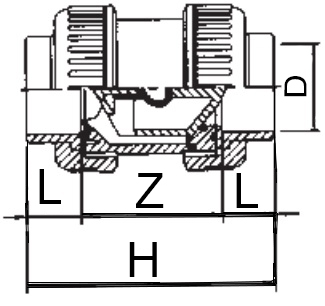

ABS Air Release Valve Diagram

Product Code D (Inch) L (mm) Z (mm) H (mm)
352958 1/2 17 46 78
352959 3/4 20 52 90
352960 1 23 60 104
352961 1 1/4 27 68 120
352962 1 1/2 31 78 140
352963 2 38 93 169



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



All text and product images are the intellectual property and copyright of Pipestock Limited

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
352958ABS Air Release Valve EPDM Plain 1/2" £64.61 70% £19.38
352959ABS Air Release Valve EPDM Plain 3/4" £81.37 70% £24.41
352960ABS Air Release Valve EPDM Plain 1" £87.15 70% £26.15
352961ABS Air Release Valve EPDM Plain 1 1/4" £90.64 70% £27.19
352962ABS Air Release Valve EPDM Plain 1 1/2" £139.85 70% £41.96
352963ABS Air Release Valve EPDM Plain 2" £183.49 70% £55.05
