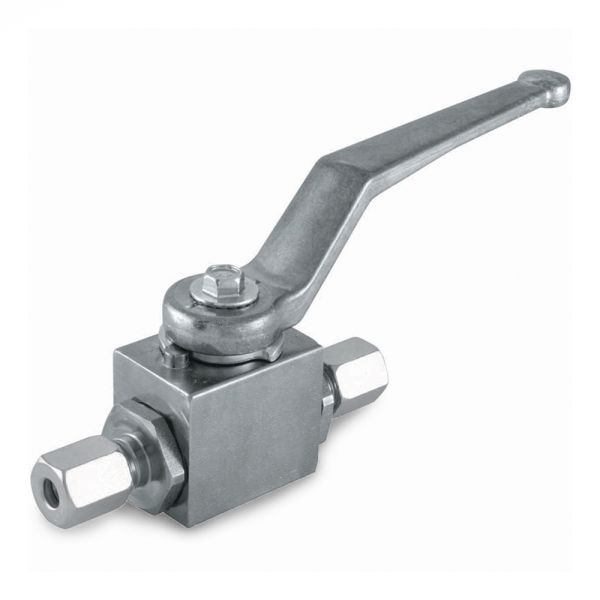

L Series
Useful Information
Key Features / Tech Specs:
- Material: mild steel
- Manufactured to DIN 2353
- Ball seat
- Series L (light)
| Product Code | Outer Diameter (mm) | B (mm) | H (mm) | h (mm) | h1 (mm) | l2 (mm) | l1 (mm) | L2 (mm) | L5 (mm) | S1 (mm) | S2 (mm) | S3 (mm) | R1 (mm) | DN (mm) | Max. Operating Pressure (bar) |
| 365596 | 6 | 26 | 32 | 13 | 72 | 36 | 53 | 82 | 67 | 22 | 14 | 9 | 107 | 4 | 400 |
| 365597 | 8 | 26 | 32 | 13 | 72 | 36 | 53 | 82 | 67 | 22 | 17 | 9 | 107 | 6 | 400 |
| 365598 | 10 | 26 | 32 | 13 | 72 | 36 | 57 | 86 | 71 | 22 | 19 | 9 | 107 | 8 | 400 |
| 365599 | 12 | 32 | 38 | 16 | 78 | 43 | 61 | 90 | 75 | 27 | 22 | 9 | 107 | 10 | 400 |
| 365600 | 15 | 35 | 40 | 17.5 | 80 | 48 | 69.5 | 99.5 | 83.5 | 30 | 27 | 9 | 107 | 13 | 400 |
| 365601 | 18 | 38 | 46 | 19 | 112 | 48 | 68 | 101 | 83 | 30 | 32 | 12 | 165 | 16 | 400 |
| 365602 | 22 | 49 | 57 | 24.5 | 132 | 62 | 87 | 119 | 102 | 41 | 36 | 14 | 165 | 20 | 250 |
| 365603 | 28 | 60 | 60 | 26.5 | 135 | 66 | 93 | 126 | 108 | 46 | 41 | 14 | 165 | 25 | 250 |
| 365604 | 35 | 60 | 60 | 26.5 | 135 | 66 | 93 | 136 | 114 | 46 | 50 | 14 | 165 | 25 | 250 |
| 365605 | 42 | 83 | 92 | 41.5 | 168 | 85 | 111 | 157 | 133 | 70 | 60 | 17 | 210 | 40 | 210 |
