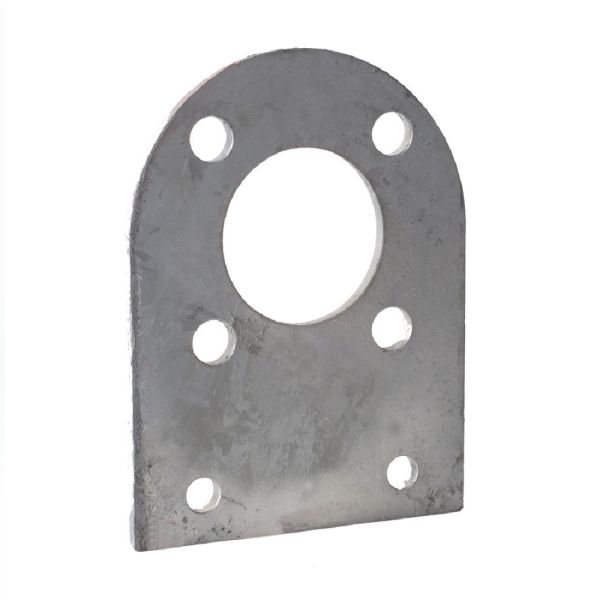

Valve Support Plate Drilled

Useful Information

Key Features / Tech Specs:

  • Drilled to BS EN1029-1
  • PN10/PN16

ABS-Valve-Support-Plate-Diagram


Product Code Nominal Size (inch) B (mm) C (mm) E (mm) L (mm) M (mm) N (mm) P (mm)
350018 1/2 95 86 50 14 16 2 65
350019 3/4 106 89 75 14 16 2 75
350020 1 143 99 75 14 16 2 85
350021 1 1/4 140 105 75 14 16 2 100
350022 1 1/2 150 105 74 14 16 2 110
350023 2 166 127 101 14 17 2 125
350024 3 199 143 127 14 22 2 160
350025 4 220 161 151 14 24 3 180
350026 6 284 217 228 14 33 3 240
350027 8 284 242 280 14 31 3 295

 N - No. of holes in base

Useful Info:

These valve support plates are drilled to BS EN1029-1 standards and manufactured from galvanised mild steel.



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
350018DP Valve Support Plate G.Mild Steel BS EN1029-1 PN10/16 1/2" £42.83 30% £29.98
350019DP Valve Support Plate G.Mild Steel BS EN1029-1 PN10/16 3/4" £45.61 30% £31.92
350020DP Valve Support Plate G.Mild Steel BS EN1029-1 PN10/16 1" £48.13 30% £33.69
350021DP Valve Supp Plate G.Mild Steel BS EN1029-1 PN10/16 1 1/4" £56.20 30% £39.34
350022DP Valve Supp Plate G.Mild Steel BS EN1029-1 PN10/16 1 1/2" £68.97 30% £48.28
350023DP Valve Supp Plate G.Mild Steel BS EN1029-1 PN10/16 2" £77.30 30% £54.11
350024DP Valve Support Plate G.Mild Steel BS EN1029-1 PN10/16 3" £105.14 30% £73.60
350025DP Valve Support Plate G.Mild Steel BS EN1029-1 PN10/16 4" £124.66 30% £87.26
350026DP Valve Support Plate G.Mild Steel BS EN1029-1 PN10/16 6" £193.70 30% £135.59
350027DP Valve Support Plate G.Mild Steel BS EN1029-1 PN10 8" £348.33 30% £243.83
