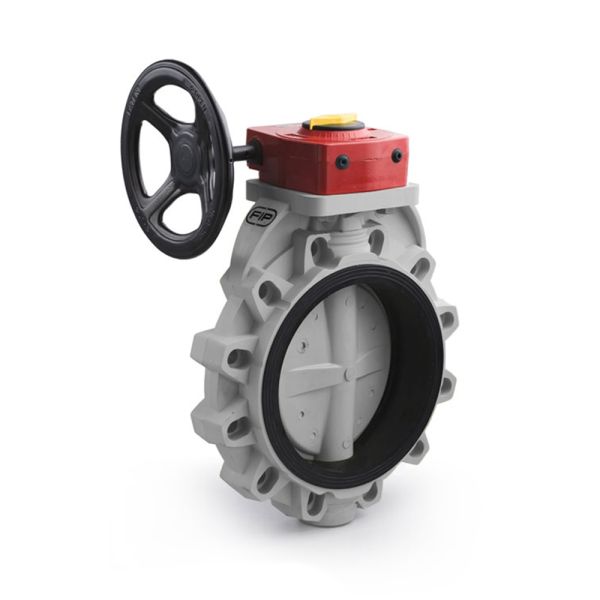

FK Butterfly Valve w/ Gearbox

Useful Information

Key Features / Tech Specs:

  • DWI approved
  • Disc Material: acrylonitrile butadiene styrene (ABS)
  • Seal Material : Ethylene Propylene Diene Terpolymer (EPDM)
  • Sizes 2 1/2" to 12" available
  • Max. pressure 10 bar
  • Gearbox operated

ABS-Butterfly-Valve-Diagram


Product Code Nominal Size (inch) B2 (mm) B5 (mm) B6 (mm) G (mm) G1 (mm) G2 (mm) G3 (mm) Z (mm) DN PN
368920 2 1/2 80 174 146 48 135 39 125 46 65 9
368921 3 93 188 160 48 135 39 125 49 80 9
368922 4 107 202 174 48 135 39 125 56 100 9
368923 5 120 222 194 48 144 39 200 64 125 9
368924 6 134 235 207 48 144 39 200 70 150 9
368925 8 161 287 256 65 204 60 200 71 200 9
368926 10 210 317 281 88 236 76 250 114 250 10
368927 12 245 374 338 88 236 76 250 114 300 8



Approvals:

DWI Approved Product - sold by Pipestock



Useful Info:

These Butterfly Valves utilise an ABS disc inside a glass reinforced polypropylene housing.



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
368920DP ABS Butterfly Valve with Gear Box EPDM 2 1/2" or 75mm £1,098.23 20% £878.58
368921DP ABS Butterfly Valve with Gear Box EPDM 3" or 90mm £1,144.52 20% £915.62
368922DP ABS Butterfly Valve with Gear Box EPDM 4" or 110mm £1,323.78 20% £1,059.02
368923DP ABS Butterfly Valve with Gear Box EPDM 5" or 140mm £1,428.41 20% £1,142.73
368924DP ABS Butterfly Valve with Gear Box EPDM 6" or 160mm £1,703.35 20% £1,362.68
368925DP ABS Butterfly Valve with Gear Box EPDM 8" or 225mm £2,354.33 20% £1,883.46
368926DP ABS Butterfly Valve with Gear Box EPDM 10" or 250mm £4,714.35 20% £3,771.48
368927DP ABS Butterfly Valve with Gear Box EPDM 12" or 315mm £5,767.38 20% £4,613.90
