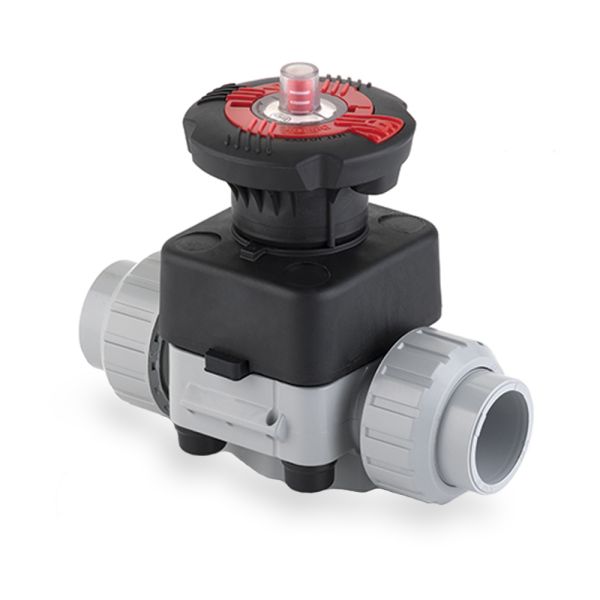

Dialock Diaphragm Valve

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs:

  • Body material: acrylonitrile butadiene styrene (ABS)
  • Seal material: ethylene propylene diene terpolymer (EPDM)
  • DWI approved
  • Patented Dialock handle
  • Sizes 1/2" to 2" available

ABS-Diaphragm-Vave-Diagram


Product Code Nominal Size (inch) B (mm) B1 (mm) E (mm) H (mm) H1 (mm) LA (mm) Z (mm) DN PN
378406 1/2 102 25 41 143 80 90 98 15 16
378407 3/4 105 30 50 167 80 108 115 20 16
378408 1 114 33 58 180 80 116 122 25 16
378409 1 1/4 119 30 72 208 80 134 144 32 16
378410 1 1/2 147 35 79 234 120 154 164 40 16
378411 2 172 46 98 272 120 184 195 50 16



Approvals:

DWI Approved Product - sold by Pipestock



Useful Info:

Solvent cement required for joining this product with other ABS systems.

Union fittings allow for easy maintenance of the diaphragm valve without the need for additional gluing.
