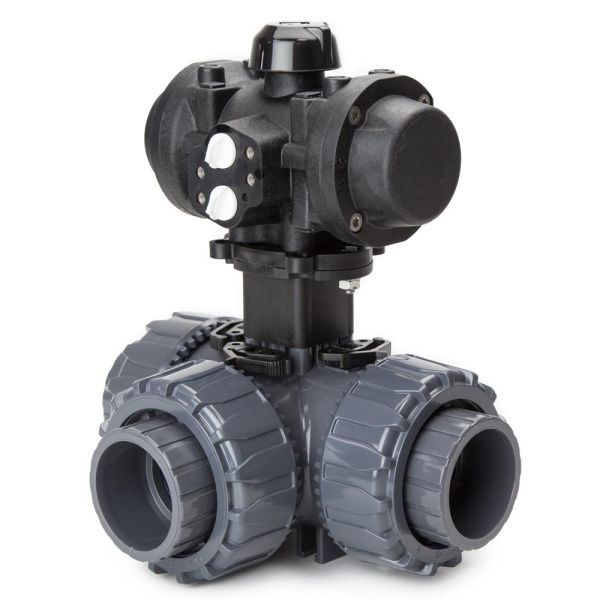

Durapipe PVCu Plain 3-Way Ball Valve T-Port Metric

Key Features / Tech Specs:

• Valve material: polyvinyl chloride unplasticised (PVCu)
• Metric plain ends
• Sizes: 20mm to 63mm
• T-Port - 4 positions
• ATEX EX112GDc approved actuator

Useful info:

Actuator:

The pneumatic actuator from Prisma offers a rotation angle from 0-90° with a working temperature between -32°C & 90°C and a maximum pilot pressure of 8 bar.

It has a Polyamide body and is SIL2 rated meaning it is free from silicon. It has double-acting torques from 17 to 165.5Nm at 6 bar.

Valves:

The TK 3-way valves are manufactured by Durapipe and offer full DWI approval across the range.

They have a PVC body with EPDM seals and offer a maximum working pressure of 16 bar.
